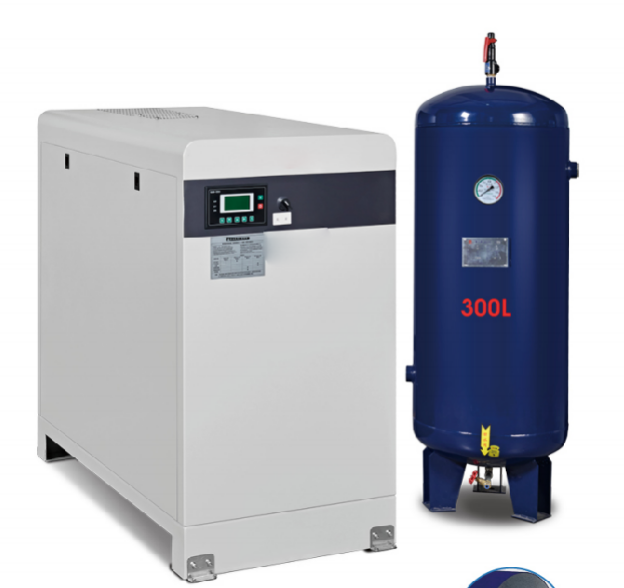

The MY-M012-6: Engineering Purity and Reliability for Modern Medical Applications

In the demanding and critically sensitive environment of healthcare, the quality and reliability of supporting equipment are not merely a matter of efficiency but of patient safety. Among the most vital of these support systems is the medical air compressor, the unseen workhorse that powers a wide array of life-sustaining and diagnostic equipment. The MY-M012-6 Medical Air-Cooled Oil-Free Scroll Air Compressor stands as a paradigm of engineering excellence in this field, designed specifically to meet the rigorous standards of modern medical facilities. This article delves into the features, technology, and specifications that make the MY-M012-6 an indispensable asset for hospitals and clinics.

The Critical Importance of Oil-Free Air

The most defining characteristic of the MY-M012-6 is its oil-free scroll technology. In many industrial compressors, oil is used to lubricate, seal, and cool the compression chamber. However, in a medical context, any risk of oil contamination in the air stream is unacceptable. This contaminated air, known as oil-laden air, can damage sensitive instruments, clog pneumatic controls, and, most alarmingly, pose a severe risk to patients if used for ventilation or anesthesia. The MY-M012-6 eliminates this risk entirely. Its scroll mechanism operates without any lubricating oil in the compression chamber, ensuring that the delivered air is 100% pure, dry, and uncontaminated, fully compliant with international medical air standards such as ISO 8573-1 Class 0.

The Superiority of Scroll Technology

At the heart of the MY-M012-6 lies its scroll compression mechanism. This technology operates on the principle of two intermeshing spirals (or scrolls)—one fixed and one orbiting. As the orbiting scroll moves, it traps and progressively compresses pockets of air between the two scrolls, moving it towards the center discharge port. This process offers significant advantages over traditional piston compressors:

• Quiet Operation: The scroll mechanism is inherently smooth and continuous, with fewer moving parts and no reciprocating forces. This results in the remarkably low noise level of just 55 dB, making it suitable for installation in environments where noise control is a priority, without causing disruption to patients or staff.

• Enhanced Reliability and Low Maintenance: With no valves, pistons, or complex gearing subject to high wear, the scroll design is exceptionally durable. This translates to reduced maintenance requirements, lower long-term costs, and greater operational uptime—a crucial factor in a 24/7 healthcare setting.

• Vibration-Free Performance: The balanced nature of the orbiting scroll ensures minimal vibration, which contributes to its quiet operation and reduces stress on the compressor's components and the building structure.

Technical Specifications and Capability

The MY-M012-6 is engineered for robust performance, tailored to the needs of a medium-sized medical facility. Its key parameters illustrate its capacity and efficiency:

• Output and Capacity: With a powerful 7.5 KW motor operating on a AC380V/50Hz supply and drawing a current of 16A, the compressor delivers a substantial free air delivery of 800 L/min. It achieves a starting pressure of 0.5 MPa and a capacity discharge pressure of 0.8 MPa, providing a stable and powerful air supply.

• System Support: It is rated to support between 12 to 23 treatment machines simultaneously, making it an ideal central source for a suite of operating rooms, ICU beds, or a dental clinic. The integrated 300L air container acts as a buffer, ensuring a steady supply during peak demand and reducing the compressor's cycling frequency, thereby extending its lifespan.

• Design and Footprint: Despite its powerful output, the unit is designed with a relatively compact outer packing size of 1050x600x1060 mm. Weighing 380 kg, it is a solid, stable unit built for stationary installation. The air-cooled system simplifies installation, as it does not require a connection to a water supply for cooling, reducing complexity and cost.

Application in the Healthcare Ecosystem

The pure, dry air produced by the MY-M012-6 is essential for a multitude of critical applications. It serves as the power source for surgical tools like drills and saws, drives pneumatic patient ventilators and anesthesia machines, and supplies air to laboratory analyzers and dental chairs. In each case, the reliability and purity of the air are directly linked to the accuracy of diagnostics and the safety of therapeutic procedures.

Conclusion

The MY-M012-6 Medical Air-Cooled Oil-Free Scroll Air Compressor is more than just a piece of machinery; it is a critical component of a hospital's life-support infrastructure. By leveraging advanced, oil-free scroll technology, it guarantees the highest air purity standard. Coupled with its quiet, reliable, and efficient operation, as evidenced by its detailed specifications, the MY-M012-6 represents a smart, long-term investment for any healthcare provider dedicated to upholding the highest standards of patient care, operational efficiency, and clinical safety. It is the silent guardian of the medical air supply, ensuring that clinicians can focus on what they do best—saving lives.
