- Model:MY-A007A
- Imaging model:B; B/B; B/M; M
- Gray scales:256 levels
- Monitor:10.4"TFT color LCD
- Cine-memory:206 frames (human), 256 frames (vet)
- storage:32 images permanent
- USB Ports:2
- Image conversion:U/D, L/R and B/W
- Name:MY-A007A full digital portable Echography ultrasound device
- Power Source:Electric
- Warranty:1 Year
- After-sale Service:Online technical support
- Shelf Life:1years
- Quality Certification:ce
- Instrument classification:Class II
- Safety standard:none
- Place of Origin:CN;GUA
- Brand Name:MAYA price laptop ultrasound
- Model Number:MY-A007A
- Material:N/A
Cheapest portable laptop ultrasound scanner usb ultrasound probe price

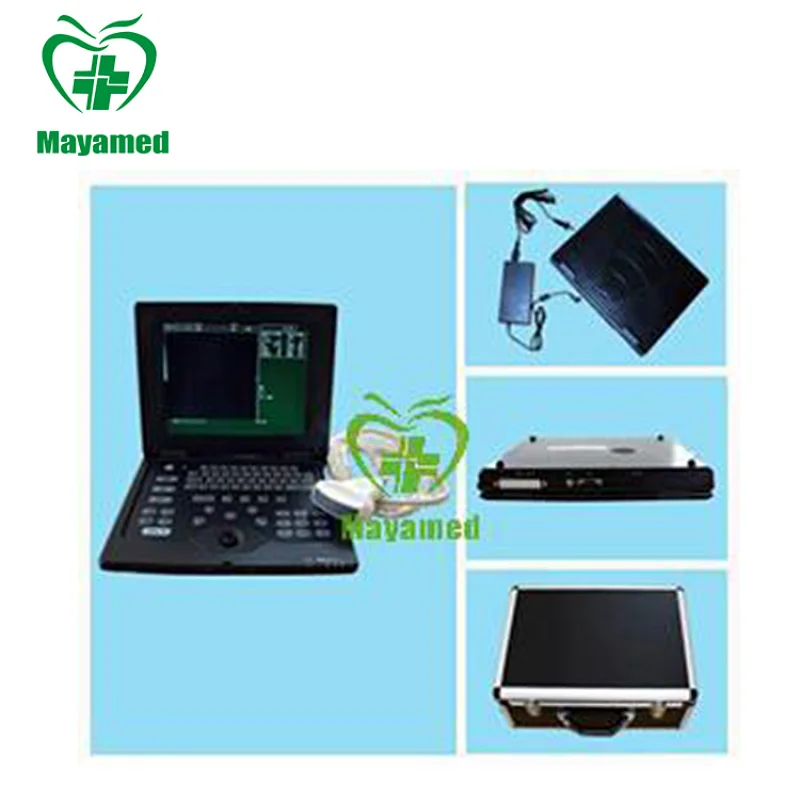

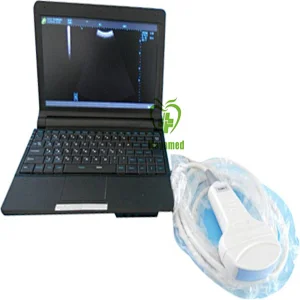

Picture of MY-A007A full digital portable Echography ultrasound device:
MY-A007A full digital portable Echography ultrasound device Specifications:
1. Scanning Method: Conves, linear multi-frequency with wide band
2. Display Mode: B, B+B, B+M, M
3. Gray Scale: 256 levels
4. Monitor Size: 10.4"TFT color LCD
5. Image Procession: DFS, DRF, RDA, VGA/DSC and image preandpost
6. Cine-memory: 206 frames (human), 256 frames (vet)
7.32 image permanent storage
8. Image magnification: *1.0, *1.2, *1.5, *2.0 times
9. Multi-step Zoom(1: 2) in both real-time and frozen modes
10. Focusing selectable
11. Depth adjustable in real-time of B and B+B mode
12. Image Conversion is U/D, L/R and B/W.
13.8 different coded-color on a external color monitor
14.15 different kinds of body marks
15. Measurement is in Distance, Circumference/Area, Heart Rate,
EF rate for heart, and GS, CRL, BPD, HC, FL, AC for OB/GY measurement,
and Gestational Age, Fetal weight, EDD calculation
16. Characteristic showing in real-time clock, ID, Sex, Age, Focusing info and Hospital Name
Standard Configuration: Main unit+one 3.5MHz convex probe
