- Place of Origin:CN;GUA
- Model Number:MY-I065G
- Brand Name:MAYAMED

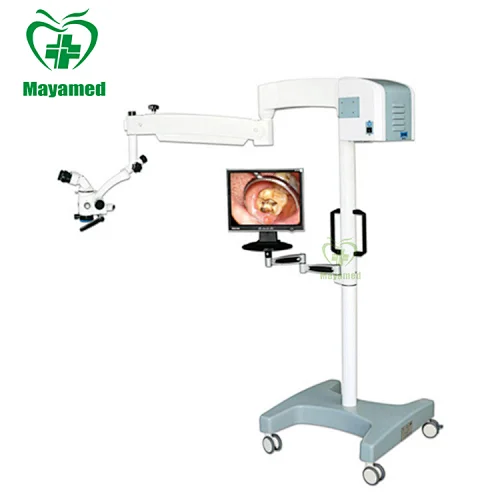

- Product name:Operation Microscope
- Eyepiece Magnification:12.5x
- Working Distance:190 mm
- Magnification for Main Microscope:5.3x, 8x, 16x
- Diameter of Field:37 mm, 25 mm, 16.7 mm
- Maximum Resolution:100 LP/mm
- Light Source:12V/100W halogen lamp for medical use
- Input Voltage:AC 220V/110V±10%, 50Hz/60Hz
- Packing Volume:0.2 m3,1 carton
- Total Weight:41 kg
Product Description

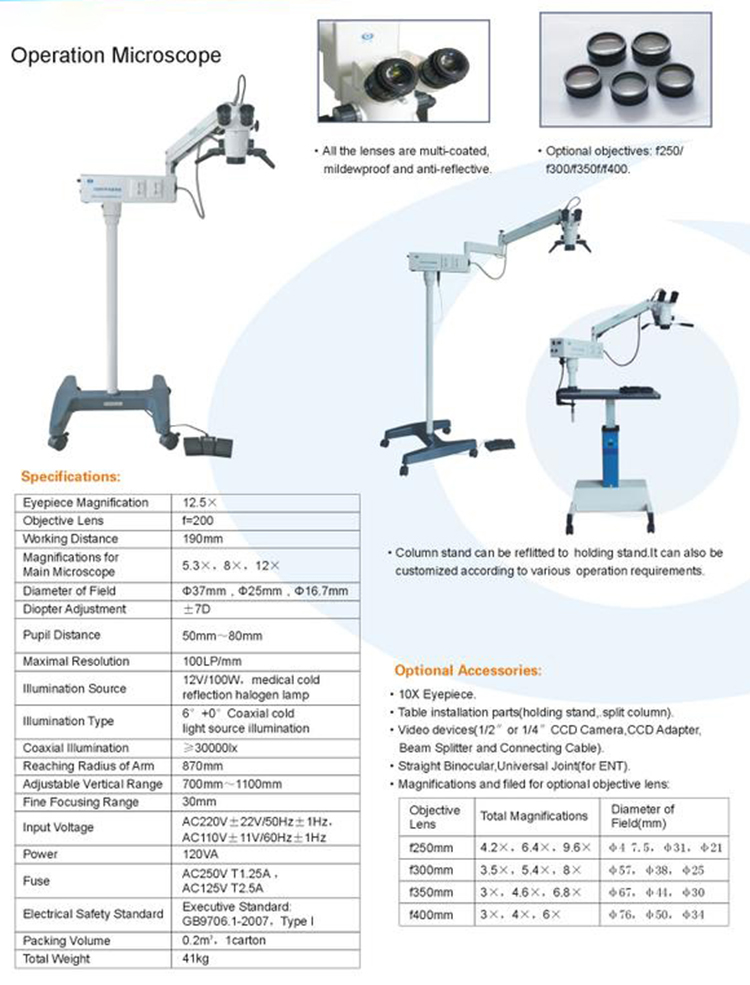

Specifications
Eyepiece Magnification:12.5×
Focal Length of Objective Lens:F=200
Working Distance:190 mm
Magnification for Main Microscope:5.3×, 8×, 16×
Diameter of Field:37 mm, 25 mm, 16.7 mm
Diopter Adjustment:±5D
Pupilary Distance:50 mm~70 mm
Maximum Resolution:100 LP/mm
Light Source:12V/100W halogen lamp for medical use
Illumination Type:6° coaxial illumination of cold light source
Coaxial Illuminance:≥30,000 Lx
Reaching Radius of Arm:870 mm
Adjustable Vertical Range:700 mm~1100 mm
Fine Focusing Range:30 mm
Input Voltage:AC 220V/110V±10%, 50Hz/60Hz
Power Consumption:120 VA
Fuse:AC 250V T4.0A, AC 125V T8.0A
Electrical Safety Standard:IEC 60601-1, Class I
Packing Volume :0.2 m3,1 carton
Total Weight :41 kg
