- Type:Doppler Ultrasound Equipment
- Place of Origin:CN
- Instrument classification:Class II
- Brand Name:Mayamed
- Model Number:MY-A027B
- Product name:4D full digital portable ultrasound scanner machine
- scanning depth:2-30 cm
- Application:Abdomen , small parts , cardiac , gynecology and obstetrics
- Export function:Archiving to DVD(optional),DICOM network,USB drive
- Format:BMP,JPG,AVI
- Input voltage:100-240V,50/60Hz
- Battery life:120 mins
- Display:15"LCD flat screen
- Dimensions:369mm*168mm*379mm
- Weight:Less than 7Kg
Welcome To MAYA
Maya Medical have rich experience to build up the new hospital and new clinic , our one-stop service is your best choice !
We concentrate on African market and set up two branches in Nigeria and Madagascar. Meanwhile, we have already established after-sale service office in Lagos Nigeria, Islambad Pakistan and also Neirobi Kenya.
Product Description
China supplier 15 inch LCD flat screen 4D full digital portable ultrasound scanner machine
Specification of Ultrasound Scanner
| Product Name | China supplier 15 inch LCD flat screen 4D full digital portable ultrasound scanner machine |
| Model NO. | MY-A027B |
| Dimensions | 369mm*168mm*379mm |
| Weight | Less than 7kg |

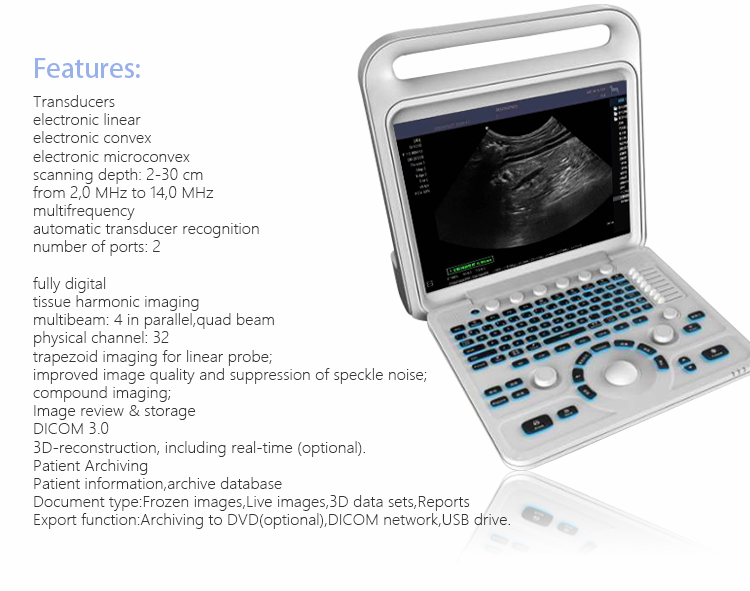

| Feature | 15"LCD flat screen , Fullly digital , Tissue harmonic imaging |
| Format | BMP,JPG,AVI Export |
| Imaging Modes | B, B+B, B+M, 4B,B-steer (note) |
| Input voltage | 100-240V,50/60Hz |
| Battery life | 120 mins |
| Application Range | The device is suitable for clinical ultrasound examination of abdomen, gynecology and obstetrics, small parts, cardiac and peripheral vessel |
| Warranty | 12 months |

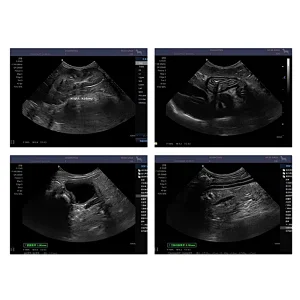

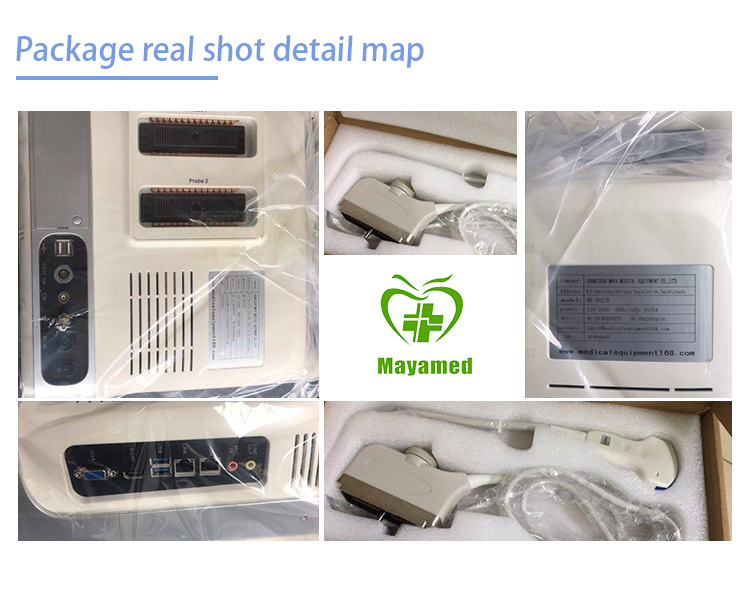

Detailed Images
