- Properties:Medical X-ray Equipments & Accessories
- Voltage:AC220V ± 22V
- frequency:50/60 Hz±1Hz
- Power capacity:≥5kVA
- mA adjusting range:36mA~70mA
- S adjusting range:0.04s~3.2s
- Size:290*260*230
- Weight:18.8kg
- MOQ:1
- Power Source:Electricity
- Warranty:1 Year
- After-sale Service:Online technical support
- Shelf Life:1years
- Instrument classification:Class II
- Model Number:MY-D019A
- Brand Name:MAYA
- Place of Origin:CN;GUA
- Material:N/A
- Safety standard:N/A
- Quality Certification:N/A

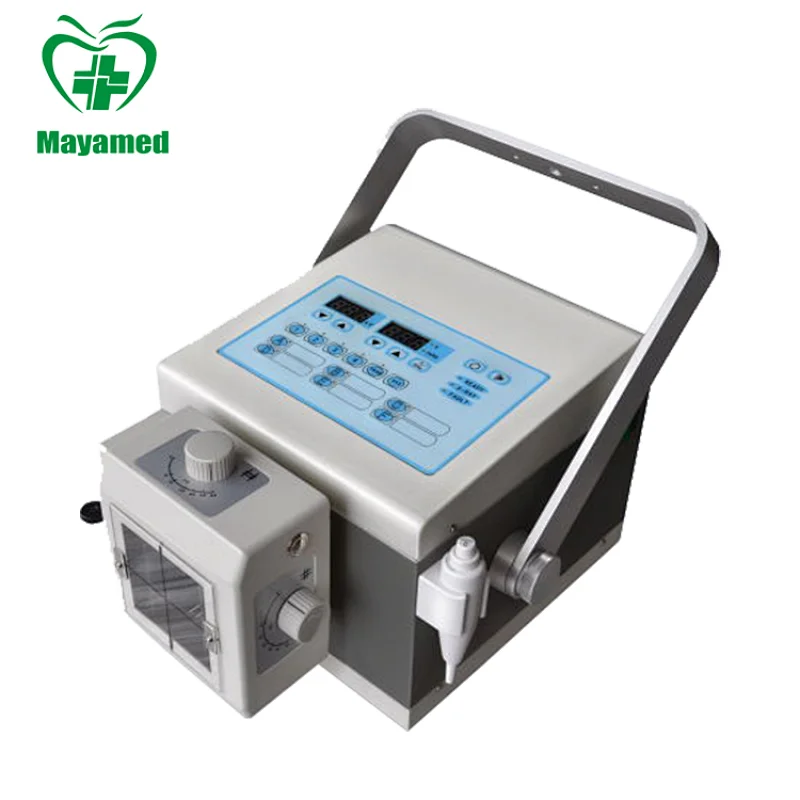

Factory price Medical digital High Frequency 4kw mini Portable X ray Machine with DR system
Applicable scope:
4 kW digital portable high frequency x ray machine for medical diagnosis, use for human limbs checking, diagnosing, especially used in the wild flow places, battlefield, playground, pet clinic, rescue diagnosis etc.
Characteristics:
- Deft and concise
- 6 periods of digital LED display
- 48 kinds of presupposed anatomy memory pattern choices
- Accuracy control method of simulation and double digital loops
- High precision control of tube voltage, tube current
- Failure self-protection, self-diagnosis
Specifications:
Model | MY-D019A |
Voltage: AC220V ± 22V, frequency: 50/60 Hz±1Hz; | |
Input power | |
Power capacity: ≥5kVA; Inner resistance≤0.5Ω | |
Maximum output | |
P =110kV×36mA=4kW | |
power | |
Nominal power | 100kV,40mA,0.1s,4kW |
Frequency | ≥40kHz |
KV adjusting range | 40kV~110kV, step adjustment is 1 kV |
mA adjusting range | 36mA~70mA |
mAs adjusting range | 1mAs-200mAs,shifted adjustment |
S adjusting range | 0.04s~3.2s |
X ray tube | Focus:0.6/1.5mm; |
Anode heating capacity:76kHU | |
Size | 290×260×230 mm |
Weight | 18.8kg |
Accessories | 1.Remote control 2.Aluminum box |
