- Product name:Medical X-Ray Machine
- Function:Radiography
- X-ray machine maximum output power:Intermittent mode 100kV ,500mA,50kW
- Range of x-ray tube current:16mA~630mA
- Exposure time:0.0025s~6.3s
- Nominal working frequency:≥30kHz
- Power supply:Three-phase five wires 380V±38V
- C.Size:L2000mm*W760mm*H685mm
- Vertical moving range:≥825mm
- Horizontal moving range:≥250mm
- Properties:Medical X-ray Equipments & Accessories
- Instrument classification:Class II
- Warranty:1 Year
- After-sale Service:Online technical support
- Place of Origin:CN;GUA
- Brand Name:MAYA
- Model Number:MY-D023

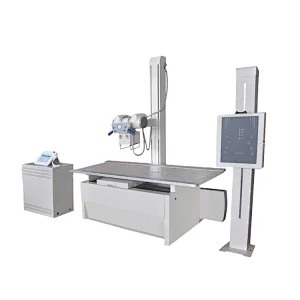

High frequency MY-D023 Hospital 50KW Medical Digital Diagnostic HF X-Ray Machine
Product Configuration:
| 1 | X-ray tube |
| 2 | Collimator |
| 3 | Radiographic table |
| 4 | High voltage generator |
| 5 | Micro console |
| 6 | High voltage cable |
| 7 | Double Grid |
| 8 | Vertical bucky stand |
1. Main Technical Parameters
(1)Function: Radiography
(2)X-ray machine maximum output power:
Intermittent mode 100kV ,500mA,50kW
(3)Range of x-ray tube current:16mA~630mA
Range of x-ray tube voltage:40kV~125kV
(4)Exposure time: 0.0025s~6.3s
(5)Nominal working frequency≥30kHz
(6)Power supply: Three-phase five wires 380V±38V
2. Main configuration
(1)High frequency high voltage generator
(including control console)
(2)X-ray tube
Focus :small focus:1.0mm large focus:2.0mm
Anode speed: 2800r/min
Anode thermal capacity: 140KHU
(3)Collimator power supply: ac 24V
(4)Radiography bed
a. Single phase 220V±22V,50Hz±1Hz
b. X-ray components supporting frame
Braking mode: Electromagnetic brake, braking force ≥98 N, button operation
Filter: N40.r10.f0=180cm, stationary type,
size: 5″×7″ 8″×10″ 10″×12″ 11″×14″ 14″×17″
C.Size: L2000mm×W760mm×H685mm
Vertical moving range: ≥825mm
Horizontal moving range: ≥250mm
