- Place of Origin:CN;GUA
- Model Number:MY-C002C
- Brand Name:MAYA

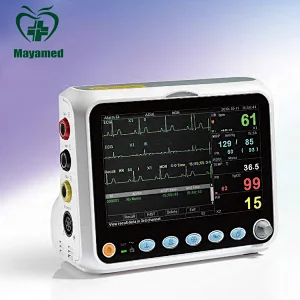

- Product name:Multi-parameter Patient Monitor
- Input dynamic range:±0.4mVp~±5mVp
- HR measuring range:20bpm~300bpm
- HR measuring accuracy:±1% or ±2bpm, whichever is greater
- Display:7 inches TFT color LCD with 800x480 pixel
- Alarming:Audible & visual alarm
- Communication:Serial/Ethernet
- Rechargeable Li-ion battery:14.8V 2200mAh
- Power supply:100-240VAC, 50/60Hz
- Standard Configuration:ECG, RESP. SpO2, NIBP, TEMP, PR
Product Description

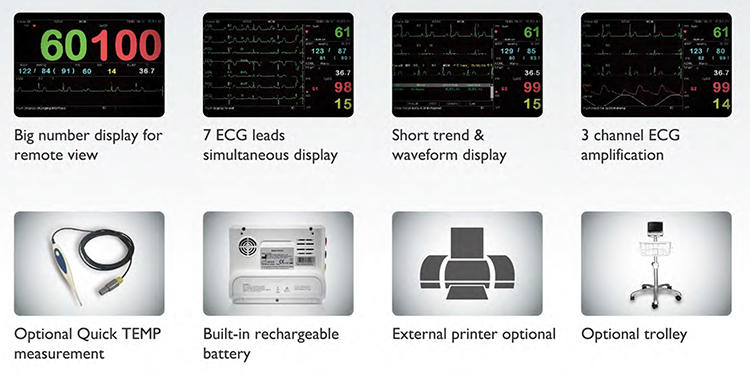

High resolution color TFT 5-channel waveform display Multi-parameter Patient Monitor
NIBP
| Technique | Oscillometric |
| Measurement range: | |
| Systolic: | 40~260mmHg(adult) |
| 40~230mmHg(pediatric) | |
| 40~130mmHg(neonate) | |
| Diastolic: | 20~200mmHg(adult) |
| 20~160mmHg(pediatric) | |
| 20~100mmHg(neonate) | |
| MAP: | 26~220mmHg(adult) |
| 26~183mmHg(pediatric) | |
| 26~110mmHg(neonace) | |
| Measurement accuracy: | average deviation ≤±5mmHg |
| standard deviation ≤8mmHg | |
| Measurement mode: | manual,automatic |
TEMP
| Measuring range | 25.0℃~4S.0℃ |
| Measuring accuracy | ±0.2℃ |
| Responding time | ≤150s |
| Quick temp(optional) | <20s(skin),<2s(ear) |
SpO2
| Transducer | Dual-wave length LED |
| SpO2 measuring range | 35%-100% |
| Low perfusion capability | 0.4%-5% |
| SpO2 measuring accuracy | Arms less than 3% for SpO2 range from 70% to 100% |
| Low periiision performance | 0.4% |
| PR measuring range | 30bpm-240bpm |
| PR measuring accuracy | ±2bpm or ±2%, whichever is greater |
ECG
| Input dynamic range | ±0.4mVp~±5mVp |
| HR measuring range | 20bpm~300bpm |
| HR measuring accuracy | ±1% or ±2bpm, whichever is greater |
| HR alarm delay time | ≤10s |
| Sensitiyity selection | x1/2 x1. x2, tolerance ≤55% |
| Sweeping speed | 12.5mm/s, 25mm/s. 50mm/s, tolerance ≤10% |
| ECG noise level | ≤30μVp-p |
| ECG input loop current | ≤0.1μA |
| Input impedance | ≥5MΩ |
| Common-mode rejection ratio | ≥89dB |
| Time constant | ≥0.3s (Monitoring mode) ≥3.2s (Diagnostic mode) |
| Frequency response | 0.5Hz~40Hz (Monitoring mode) 0.05Hz~75Hz (Diagnostic mode) |
RESP
| RR measuring range | 0rpm~120rpm |
| RR measuring accuracy | ±5% or ±2 rpm, whichever is greater |
Others
| Power supply | 100-240VAC, 50/60Hz |
| Rechargeable Li-ion battery | 14.8V 2200mAh |
| Display | 7 inches TFT color LCD with 800x480 pixel |
| Alarming | Audible & visual alarm |
| Communication | Serial/Ethernet |
Standard Configuration
ECG, RESP. SpO2, NIBP, TEMP, PR

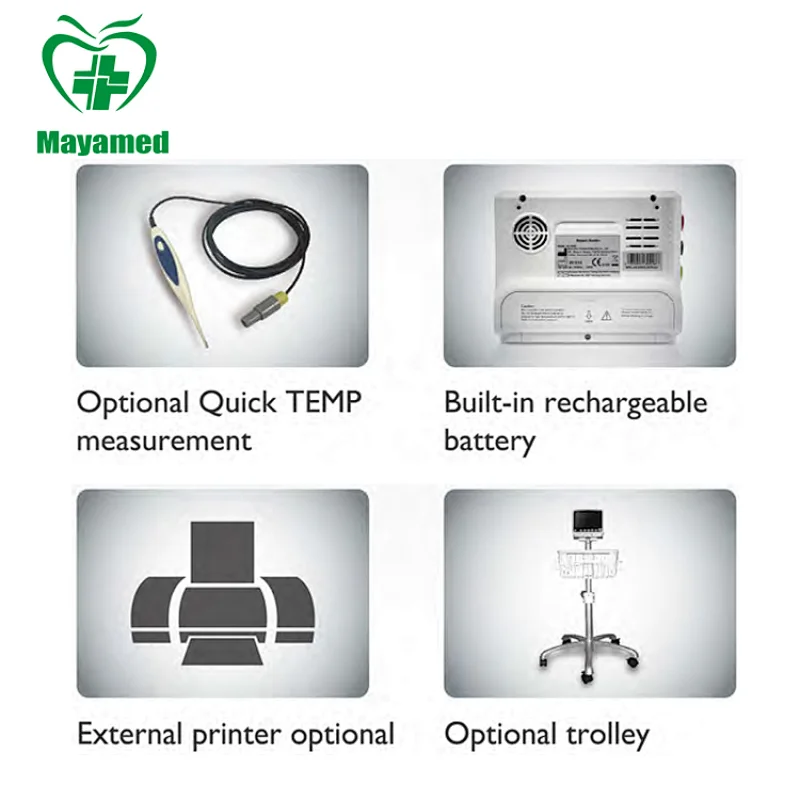

Option
CO2 . Nellcor SpO2 .Trolley, Wall-mount. SunTech NIBP Central monitoring system, External printer
