High resolution color TFT 5-channel waveform display Multi-parameter Patient Monitor

High resolution color TFT 5-channel waveform display Multi-parameter Patient Monitor

Categories: Patient monitor
Model NO.: MY-C002C
  • Place of Origin:CN
  • Instrument classification:Class II
  • Brand Name:MAYA
  • Model Number:MY-C002C
  • Product name:Multi-parameter Patient Monitor
  • Input dynamic range:±0.4mVp~±5mVp
  • HR measuring range:20bpm~300bpm
  • HR measuring accuracy:±1% or ±2bpm, whichever is greater
  • Display:7 inches TFT color LCD with 800x480 pixel
  • Alarming:Audible & visual alarm
  • Communication:Serial/Ethernet
  • Rechargeable Li-ion battery:14.8V 2200mAh
  • Power supply:100-240VAC, 50/60Hz
  • Standard Configuration:ECG, RESP. SpO2, NIBP, TEMP, PR
Product Description

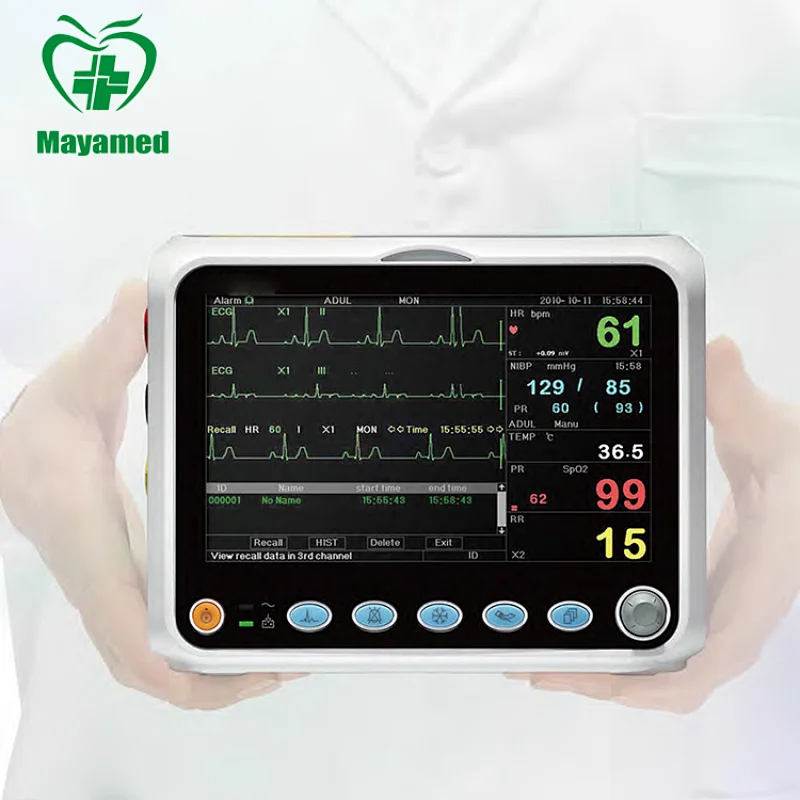

High resolution color TFT 5-channel waveform display Multi-parameter Patient Monitorpatient monitor-1.jpg

NIBP

TechniqueOscillometric
Measurement range:
Systolic:40~260mmHg(adult)
40~230mmHg(pediatric)
40~130mmHg(neonate)
Diastolic:20~200mmHg(adult)
20~160mmHg(pediatric)
20~100mmHg(neonate)
MAP:26~220mmHg(adult)
26~183mmHg(pediatric)
26~110mmHg(neonace)
Measurement accuracy:average deviation ≤±5mmHg
standard deviation ≤8mmHg
Measurement mode:manual,automatic

TEMP

Measuring range25.0℃~4S.0℃
Measuring accuracy±0.2℃
Responding time≤150s
Quick temp(optional)<20s(skin),<2s(ear)

SpO2

TransducerDual-wave length LED
SpO2 measuring range35%-100%
Low perfusion capability0.4%-5%
SpO2 measuring accuracyArms less than 3% for SpO2 range from 70% to 100%
Low periiision performance0.4%
PR measuring range30bpm-240bpm
PR measuring accuracy±2bpm or ±2%, whichever is greater

ECG

Input dynamic range±0.4mVp~±5mVp
HR measuring range20bpm~300bpm
HR measuring accuracy±1% or ±2bpm, whichever is greater
HR alarm delay time≤10s
Sensitiyity selectionx1/2 x1. x2, tolerance ≤55%
Sweeping speed12.5mm/s, 25mm/s. 50mm/s, tolerance ≤10%
ECG noise level≤30μVp-p
ECG input loop current≤0.1μA
Input impedance≥5MΩ
Common-mode rejection ratio≥89dB
Time constant

≥0.3s (Monitoring mode)

≥3.2s (Diagnostic mode)

Frequency response

0.5Hz~40Hz (Monitoring mode)

0.05Hz~75Hz (Diagnostic mode)

RESP

RR measuring range0rpm~120rpm
RR measuring accuracy±5% or ±2 rpm, whichever is greater

Others

Power supply100-240VAC, 50/60Hz
Rechargeable Li-ion battery14.8V 2200mAh
Display7 inches TFT color LCD with 800x480 pixel
AlarmingAudible & visual alarm
CommunicationSerial/Ethernet

Standard Configuration
ECG, RESP. SpO2, NIBP, TEMP, PR

Option
CO2 . Nellcor SpO2 .Trolley, Wall-mount. SunTech NIBP Central monitoring system, External printer
