- Type:Urine Analysis System
- Place of Origin:CN;GUA
- Instrument classification:Class II
- Brand Name:Mayamed
- Model Number:MY-B016D
- Product name:Laboratory equipment full automated sediment urine analyzer
- Language version:Multi-language Optional
- Keywords:Sediment urine analyzer
- Specimen:At least 2.5 ml
- Detection speed:120-150 samples/hour
- Aspiration:0.5 m1
- Carrying pollution rate:< 0.05%
- Recognition rate:> 95% artificial auxiliary judgment
- Repeatability Test:CV < 10%
- False negative rate:< 3%
Maya Medical have rich experience to build up the new hospital and new clinic , our one-stop service is your best choice !
We concentrate on African market and set up two branches in Nigeria and Madagascar. Meanwhile, we have already established after-sale service office in Lagos Nigeria, Islambad Pakistan and also Neirobi Kenya.

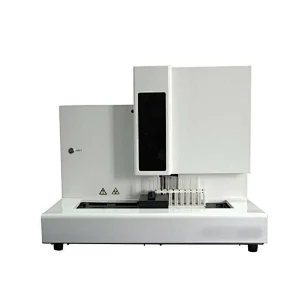

Multi language optional laboratory equipment full automated sediment urine analyzer
Principle
Use flow counting cell, medical image information scanning technology and machine vision visual recognition technology to automatically position, track, scan, identify, classify, count and analyze the urine formed components.
Test items
Red blood cell, white blood cells, pus cells, squamous epithelial cells, non-squamous epithelial cells,WBCC, transparent casts, unclassified casts, crystals, bacteria, blood bacteria, sperm, mucus and etc.
Specification of Sediment Urine Analyzer
| Product Name | Multi language optional laboratory equipment full automated sediment urine analyzer |
| Model NO. | MY-B016D |
| Specimen | At least 2.5 ml |
| Detection speed | 120-150 samples/hour |
| Aspiration | 0.5 m1 |
| Recognition rate | > 95% artificial auxiliary judgement |
| Repeatability Test | CV< 10% |
| Carrying pollution rate | < 0.05% |
| False negative rate | < 3% |
Data storage | 200000 |
| Languages | Chinese, English or language set according to user's requirements |
| Working environment (temperature and humidity) | 18°C 30'C |
Power supply | AC220V 10% 50Hz |
Dimensions (main frame) | 660mm × 440mm × 570mm |
Weight | 33kg |
Features
Sample injection system
Fully automated orbital 10-tube specimen rack automatically senses continuous sample injections, and the sample area to be tested can accommodate 60 specimens at a time.
Automatic specimen scanning and positioning, real walk away, no centrifugation, directly test with original urine, automatic suction and mixing.
Flushing system
Use high-precision, PTFE-plated sample-sucking needles to make the cleaning of the instrument pipeline more thoroughly and cross-contamination is eliminated as much as possible.
Industry's highest 4-channel design
Single-needle 4-channel sampling design, the instrument has a channel to detect other channels settlement, cleaning function, to save the test time to the maximum, equivalent to 4 sets of instruments in the test, and fully guarantee the speed and efficiency of the specimen detection.
Self-learning function
The target of instrument misidentification is modified by the operator. After training, it can be stored and automatically modeled.
Automatic focusing function
After the instrument is used for a period of time, special focusing liquid can be used to automatically correct the focal length of the microscope to ensure clear and complete sample shooting.
