- Type:Blood Analysis SYstem
- Place of Origin:CN;GUA
- Instrument classification:Class II
- Brand Name:MAYAMED
- Model Number:MY-B001A
- Display:8.4 inches color touch screen,
- Throughput:up to 60 samples test per hour
- System:Windows operation system
- Large storage capacity:up to 100,000 samples +3 histograms
- Printer:Internal thermal-sensitive printer
- Interface:RS232 interface, PC connecting

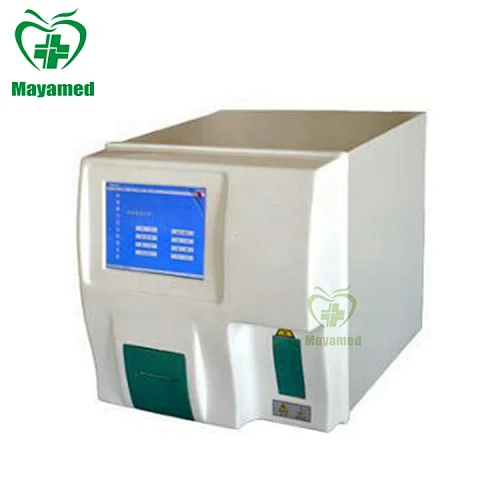

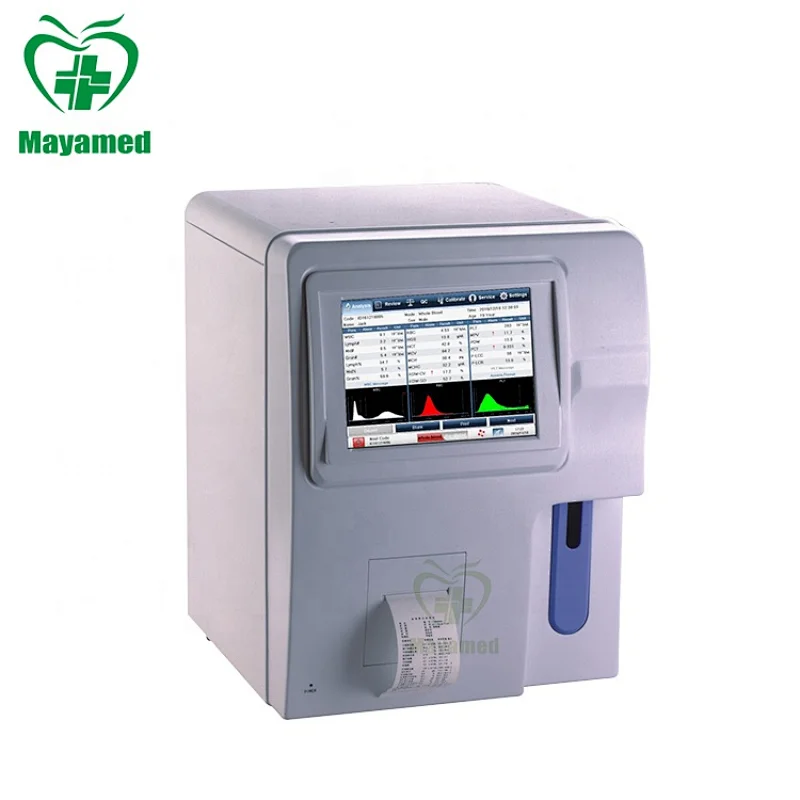

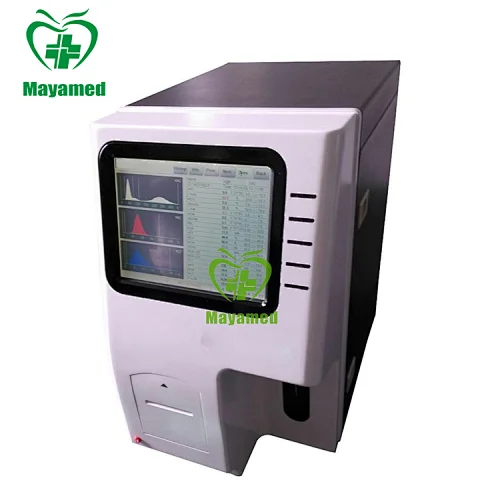

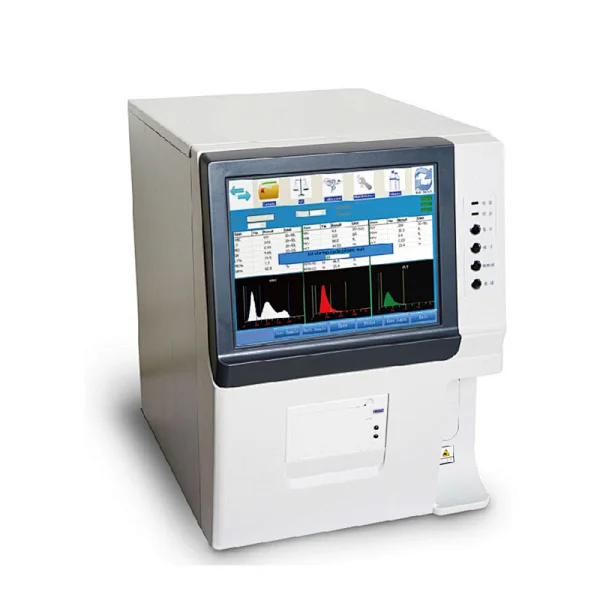

MY-B001A Clinical blood test machine 3-part Auto Hematology AnalyzerEquipment
Feature:
*3-part differentiation of WBC, 24 parameters,up to 60 samples test per hour
*Electrical resistance for counting and SFT method of Hemaglobin
*Low sample comsumption : venous 9.8 ul( prediluted 20 ul fortwice testing one time
*8.4’’ inches colortouch screen, Windows interface all testing parameter displayed simultaneously
*Windows operation system graphical buttons mouse and keyboard operation
*Automatic diluting , Mixing , rinsing and clog clearing
*Automatically sample probe cleanning (inside and outside)
*Large storage capacity: up to 10,000 samples +3 histograms
*Internal thermal-sensitive printer or external printer.
*RS232 interface, PC connecting
Main Technical Specifications:
*Methodology: Electrical resistance for counting, hemiglobincyanide method and SFT method for hemoglobin
*Parameter: 3-part differentiation of WBC; 21 parameters and 3 color histograms (WBC, RBC, PLT)
*Work mode : double Channel + unique Hemoglobin test system
*Sample volume: 9.8 u L for Venous and capillary mode, 20 u L for prediluted mode
*Throughput: More than 60 samples per hour, operatable 24 hours a day, auto sleeping and waking-up functions
*Storage: up to 100000 sample results including histograms can be stored, convenient for inquiry and management of history data
*Operation langue: English
*QC control: X-B, L-J, X , SD, CV %
*Refrence Value Setting : Male ( Female, Children, Neonate
*Input / output: RS232, parallel printer and keyboard
*Print: Graphic thermal printer with various printing format, optional external printer
*Temperature : 18'C - 30*C,wet ^ 10-90%
*Power supply : 220 V ±22 VAC, 50±1 Hz
*Dimension : 33 CM ( L ) * 38 CM ( W ) * 43 CM ( H )
*Weight: 20 KG
Precision:
Parameters | linear range | CV% |
WBC( 10 9/L) | 0.0-99.9 | ≤2% |
RBC( 1012/L) | 0.0-9.99 | ≤1.5% |
MCV(fL) | 40-150 | ≤0.5% |
PLT( 109/L) | 0-999 | ≤4.0% |
HGB(g/L) | 0.0-300.0 | ≤1.5% |
Parameters:
WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB.HCT, MCV,MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV,PDW,PCT,P-LCR P-LCC
3 - histograms : WBC.RBC and PLT
