- Type:Urine Analysis System
- Place of Origin:CN;GUA
- Instrument classification:Class II
- Brand Name:Mayamed
- Model Number:MY-B016C
- Product name:Medical lab analyzers full automatic sediment urine analysis machine
- Keywords:Urine analysis machine
- Characteristic:Can be used without centrifugation
- Test Speed:30 samples/hour
- Sample Volume:Minimum urine volume 2ml, minimum injection volume 0.5ml
- Contamination Rate:< 0.05%
- Repeatability Test:CV < 10%
- Accuracy:More than 95% (Artificial auxiliary judgments)
- Display:5-inch LCD screen
- Standard Configuration:Built-in computer, standard display, mouse, keyboard, printer
Maya Medical have rich experience to build up the new hospital and new clinic , our one-stop service is your best choice !
We concentrate on African market and set up two branches in Nigeria and Madagascar. Meanwhile, we have already established after-sale service office in Lagos Nigeria, Islambad Pakistan and also Neirobi Kenya.

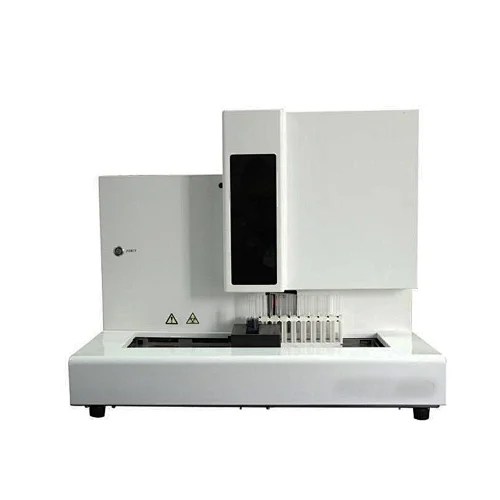

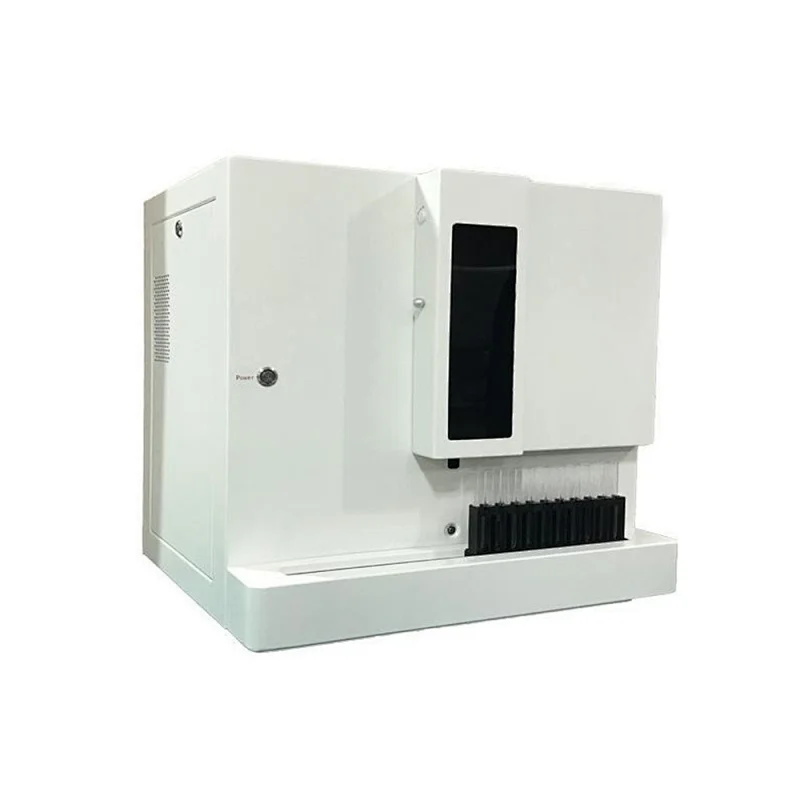

5 inch LCD screen medical lab analyzers full automatic sediment urine analysis machine
Principle
Using machine vision technology: automatic identify, classify and count the formed elements in urine with microscope automatic morphological methods.
Test items
Red blood cells, white blood cells, pus cells, squamous epithelial cells, non-squamous epithelial cells, transparent casts, unclassified casts, crystals, bacteria, blood bacteria, sperm, mucus, etc.
Specification of Sediment Urine Analyzer
| Product Name | 5 inch LCD screen medical lab analyzers full automatic sediment urine analysis machine |
| Model NO. | MY-B016C |
| Test Speed | 30 samples/hour |
| Detection Mode | The microscope counts and classifies target identifications such as red blood cells, white blood cells, and crystals |
| Sample Volume | Minimum urine volume 2ml, minimum injection volume 0.5ml |
| Sample Process | The sample can be directly tested without centrifugation |
| Injection Method | Automatic trail injection, 10 samples on the machine at the same time |
| Accuracy | More than 95% (Artificial auxiliary judgments) |
| Repeatability Test | CV< 10% |
Contamination Rate | < 0.05% |
| Display | 5-inch LCD screen |
| Standard Configuration | Built-in computer, standard display, mouse, keyboard, printer |
Power supply | AC 220V±10%, 50Hz |
Dimensions (main frame) | 520mm x440mm x 550mm |
Weight | 35kg |
