- Transducer:2.6MHz
- Probe:Mechanical sector scanning
- Detect depth:≥140 mm
- Host power supply:Internal battery
- Battery:Voltage 7.4V(standard value)
- capacity:≥4200mAh
- Output voltage for adapter:9V
- Output interface:USB
- Max. Measurement:999ml
- Product name:Ultrasound bladder scanner
- Power Source:Electricity
- Warranty:1 Year
- After-sale Service:Online technical support
- Shelf Life:1years
- Instrument classification:Class II
- Place of Origin:CN;GUA
- Model Number:MABS02
- Brand Name:MAYA
- Material:N/A
- Quality Certification:N/A
- Safety standard:N/A

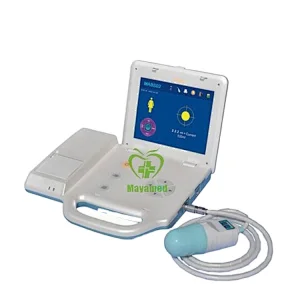

MABS02 Touch Screen cheap portable ultrasonic bladder scanner price

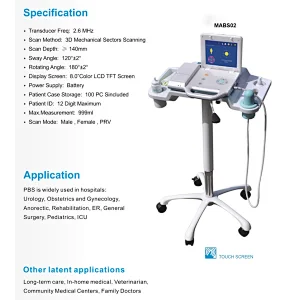

Technical Specification
1) Transducer: 2.6MHz;
2) Probe: mechanical sector scanning;
3) Detect depth: ≥140 mm;
4) Host power supply: Internal battery
5) Battery: Voltage 7.4V(standard value), capacity: ≥4200mAh
Charge the batteries: charge for 3.5-4 hours full;
Full batteries: sustainable use for 4 hours(In the ready state);
6) Charger : Input voltage for the device: AC 220V±10%,50±1HZ;
Output voltage for adapter:9.0V;Output voltage for charger: 8.5V;
7) Output interface: USB for data store and software upgrade
8) Display mode: measured result, present location and B mode image
9) Measured result: automatically measurement and display its result.
10) Case management: Store, browse and export
11) Max. Measurement: 999ml;
12) Measurement accuracy: 0ml≤V≤999ml, ±15%;
13) Storage capacity: 100 cases
14 ) Device dimension: 310x260x50mm;
15) Net weight: about 2.1 KG.
