- Instrument classification:Class II
- Place of Origin:CN;GUA
- Properties:CT Scan
- Brand Name:Mayamed
- Model Number:MY-D055C(16 slice)
- Product name:3D lasers positioning system 16 slice ct scan machine price
- Function:Medical Diagnosis
- Keyword:ct scan machines
- Gantry aperture:70 cm
- Gantry cooling:air
- Gantry rotation:Belt-driven
- Tube focal spot size:Small 0.7mmx0.8mm,Large 1.2mmx1.4mm
- Number of detector rows:8
- Number of detectors per row:704
Maya Medical have rich experience to build up the new hospital and new clinic , our one-stop service is your best choice !
We concentrate on African market and set up two branches in Nigeria and Madagascar. Meanwhile, we have already established after-sale service office in Lagos Nigeria, Islambad Pakistan and also Neirobi Kenya.

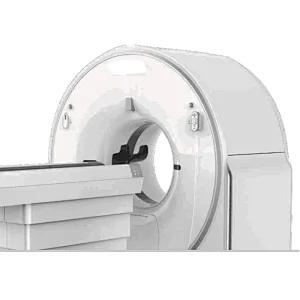

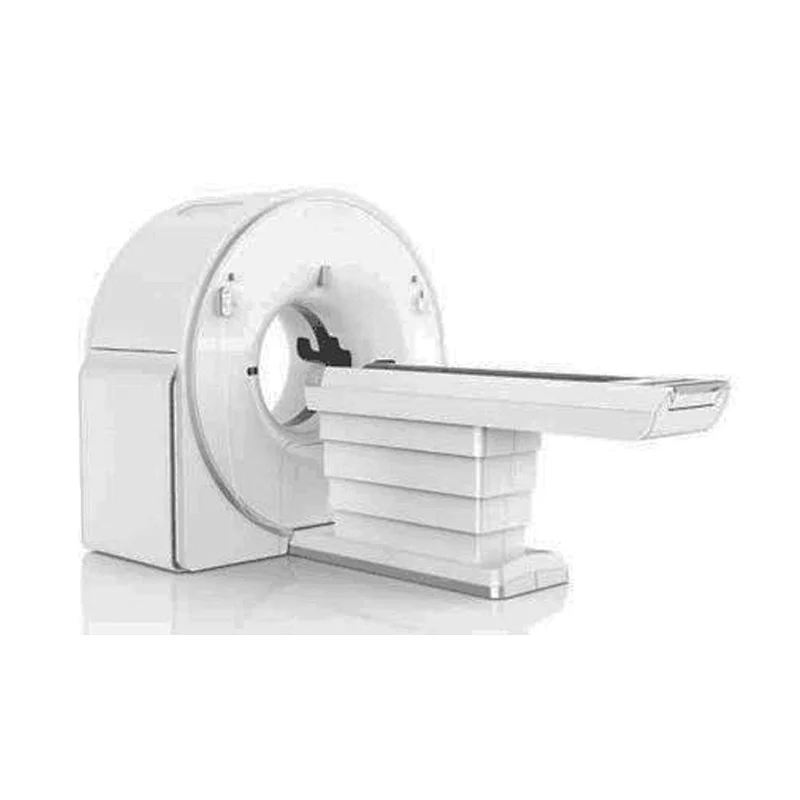

Medical equipment 70 cm aperture 3D lasers positioning system 16 slice ct scan machine price
Specification of CT Scan Machine
| 1 | Gantry |
Aperture:70cm Manual control from POD at console Gantry cooling: air Gantry rotation: belt-driven Slip ring type: low voltage Positioning system: 3D lasers | |
| 2 | HV Generator |
Power rating: 32kW MA range: 10-300mA KV range: 70kV, 80kV, 100kV, 110kV, 120kV, 140kV. | |
| 3 | Tube |
Anode heat storage capacity: 1.5MHU Anode heat dissipation:441KHU/Min Small focal spot size: 0.7mm×0.8mm Large focal spot size: 1.2mm×1.4mm | |
| 4 | Detector |
Number of detector rows: 8 Number of detectors per row: 704 | |
| 5 | Table |
Maximum motion range:1600mm Max. speed in horizontal direction:150mm/s Motion tolerance in horizontal direction (200 kg):±1mm Table elevation range:440mm Max weight load:450lb(205kg) Foot pedal control, table horizontal motion | |
| 6 | Console |
Uninterrupted power supply UPS (3KVA) to prevent sudden power outages and ensure the system stability Memory:8G Hard disk:850 GB Frequency:2.0 GHz Liquid crystal display of high resolution, displaying matrix (M * M): 1920×1200 Progressive scan display DICOM 3.0 network interface Burn mode:DVD DICOM 3.0 print interface DICOM 3.0 output and input interface Auto-film Auto-voice and integrated intercom for communication between operator and patient Include DICOM PRINT,DICOM STORE,DIOCM QUERY,DICOM RETRIVE,WORKLIST Include HIS & RIS interface Raw data can be reconstructed on the workstation | |
7 | Scan and Image Reconstruction |
The fast rotation time: 0.75s/360° Longest scanning time:100s Longest scanning range:1200mm Scout scan direction: anteroposterior, lateral Pitch range: 0.25-1.75 Maximum number of slices per rotation:16 slices Thinnest image slice thickness in 16-slice mode:1.25mm Thinnest reconstructed slice thickness in 16-slice mode:1.25mm Nominal slice thickness for axial scan: 1.25 mm,2.5 mm, 5 mm,10 mm Nominal slice thickness for helical scan: 1.25 mm,2.5 mm,3.75 mm,5.0 mm,7.5 mm,10 mm Parallel image processing Simultaneous Reconstruction: Can reconstruct and reorganize the images simultaneously with a variety of options. Different reconstruction options are available within the scan protocol. Scanning FOV: 43cm Image reconstruction matrix:1024×1024 Image display matrix:1024×1024 | |
| 8 | PDU |
Input voltage: 3-phase 380V, 50Hz Power: 50kVA | |
| 1 | System Software |
Beam hardening artifact correction software Posterior cranial fossa optimization Motion correction reduces motion artifact Pediatric protocol NDI (NanoDose Iteration) Filming print software Remote maintenance system | |
| 10 | Accessory KIT |
| Patient Table Pad, Head Holder, Head Holder Cushion, Phantom. | |
| 11 | Clinical Application |
| Include Volume Reconstruction (VR), Multi-planar Reconstruction(MPR), Curved Planar Reconstruction (CPR), Surface Shaded Display(SSD), MIP,MinP. | |
| 12 | Option |
| UPS,Printer,High Pressure Injector,FOV 500mm,Workstation,Abdominal fat analysis,The orthopaedic module | |
