- Scanning mode:Electric convex, Electric linear, Electric micro-convex
- Display mode:B, B/B, 4B, M, B+M
- Monitor:12.1 inch monitor VGA
- Probe connector:2 (optional)
- Gray Scale:256
- TGC:8 TGC adjustments
- Report:Display, storage and print report directly
- Output port:AV, HDMI, VGA, USB
- Power Source:Electricity
- Warranty:1 Year
- After-sale Service:Online technical support
- Shelf Life:1years
- Instrument classification:Class II
- Place of Origin:CN;GUA
- Model Number:MY-A003B
- Brand Name:Mayamed
- Material:N/A
- Quality Certification:N/A
- Safety standard:N/A
Maya Medical have rich experience to build up the new hospital and new clinic , our one-stop service is your best choice !
We concentrate on African market and set up two branches in Nigeria and Madagascar. Meanwhile, we have already established after-sale service office in Lagos Nigeria, Islambad Pakistan and also Neirobi Kenya.

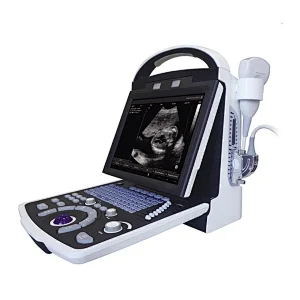

MY-A003B medical supplies full digital laptop ultra sound machine ultrasound scanner
Technical Specification
Scanning modes : Electric convex, Electric linear, Electric micro-convex
Modes : B,B+B,B+M,M,4B
Imaging technology: Full-digital beam forming, continuous dynamic focusing, dynamic aperture, dynamic apodization, tissue harmonic imaging, digital receiving focusing , 3D reconstruction
Gray scales : 256
Cine-loop : 1024 frames (Max)
TGC:8 TGC adjustments
Storage function : Image storage, cine loop storage, mass storage capacity, measurement result storage, report storage
Measurement and calculation analysis software: Obstetric,Gynecology,Small parts, Musculoskeletal,Cardiac
Output port:AV, HDMI, VGA, USB
Monitor : 12 inch VGA
Matching Printer:Laser/Video/Thermal printer
Report: Display, storage and print report directly
Work-station:Built-in ultrasonic work-station software, IPC of high stability, DICOM
Standard Configuration : Main unit, one probe connector,2.0-5.0 MHz multi-frequency convex probe
Optional:Multi-frequency 5.0-10 MHz linear probe,5.0-10 MHz micro-convex probe.Second probe connector,Laser/ video/ Thermal printer, Foot switch, Battery, Trolley, Ultrasonic work-station, Carrying Bag
