- Type:Portable Ultrasonic Diagnostic Devices
- Product name:Changeable Head Ultrasonic Probe
- Modes:B, B&M, 2B, 4B, THI, Color, Power, PW
- Gray level:256
- Power supply:100-240V~50/60Hz 100VA
- Operation:WiFI connect to any Android or Window System
- Battery lifetime:6~8 hours
- Language:Chinese, English, , Russian, Spanish, Italian, Czech
- Waterproof level:Ipx6
- Net weight:About 365g
- Power Source:Electricity
- Warranty:1 Year
- After-sale Service:Online technical support
- Shelf Life:1years
- Instrument classification:Class II
- Safety standard:none
- Place of Origin:CN;GUA
- Model Number:MY-A010L
- Brand Name:MAYA
- Material:N/A
- Quality Certification:None
Product Description
MY-A010L Pocket WirelessChangeable HeadUltrasonic Probe
HIGHERefficiencyAMAZING image quality
PEERLESSstabilityOUTSTANDINGdurability
Technical Specifications
| Platform | Android, Window |
| Modes | B, B&M, 2B, 4B, THI, Color, Power, PW |
| Gray level | 256 |
| Transducer Frequency | 2-11MHz |
| Digital Technology | Wide-angle imaging Panoramic focusing technology Compatible with high and low speed blood Panoramic imaging Frequency compounding Space compounding Rolling M technology Real-time Dynamic Aperture Tissue Harmonic Imaging Tissue Specific Imaging |
| Max scanning Depth | 310mm |
Imaging Processing
| Pre-processing | Cloud processing technology Fine blood flow imaging, high sensitivity Gain Dynamic range Persistence M Soften Noise suppression |
| Post-processing | Image enhancement Gray map Pseudo color map Interface rotation Left/right reverse Up/down reverse |
Function
| Operation | WiFI connect to any Android or Window System |
| Cine-loop | 341 frames movie playback stored |
| Zoom | Max 10 times |
| Qopt | One-key optimization |
| Language | Chinese, English, , Russian, Spanish, Italian, Czech |
| DICOM | DICOM3.0 |
| Print report with text and image |
Measurement and calculation
| B mode | Distance, angle, area, volume, trace length, distance ratio, area ratio, histogram |
| M mode | Distance, time, slope, heart rate Color/Power/PW mode: D velocity, D trace, PS/ED |
| Application package | Abdomen, Small parts, Vascular, Obstetrics, Gynecology, Cardiology, Neurology, Urology, Orthopedics, Anesthesia |
Others
| Power supply | 100-240V~50/60Hz 100VA |
| Battery lifetime | 6~8 hours |
| Net weight | About 365g |
| Waterproof level | Ipx6 |

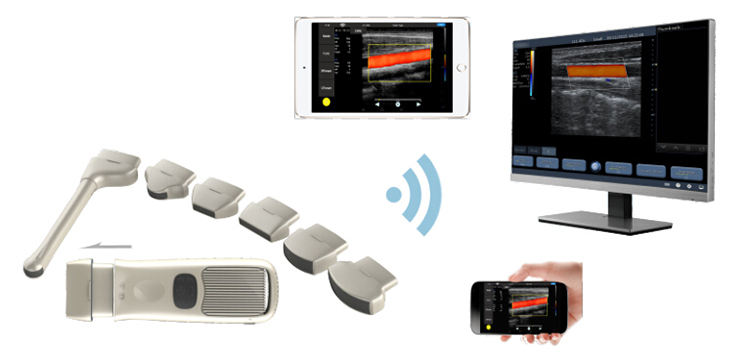

Multiple frequency probes
Standard Configurations
Convex Probe
Power Adapter
Android applications
Abundant measurement & calculation software packages
24 months warranty since ex-factory date for main unit
12 months warranty since ex-factory date for probes

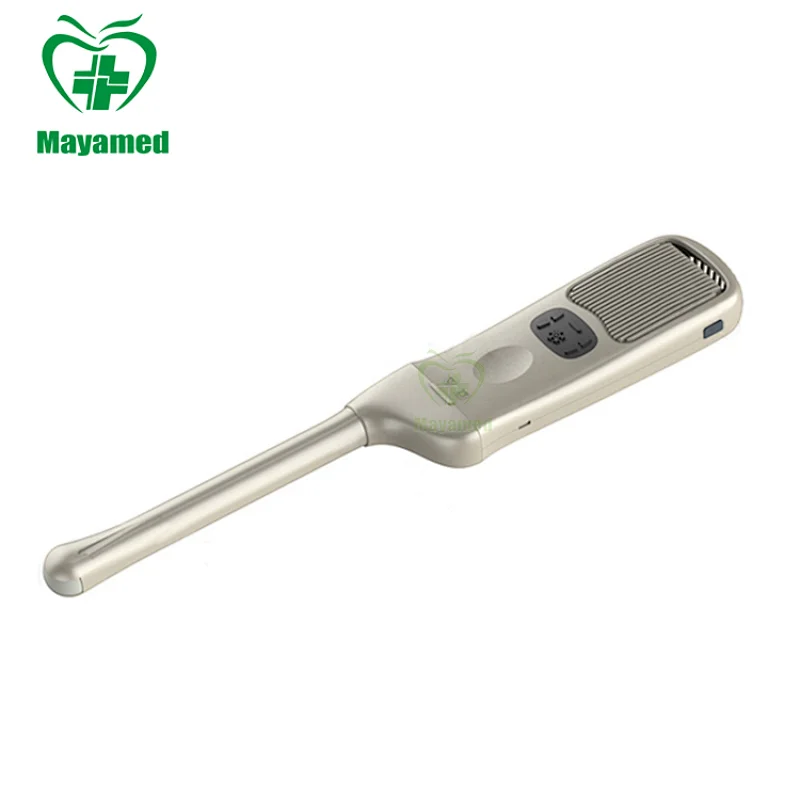

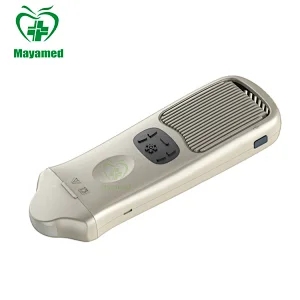

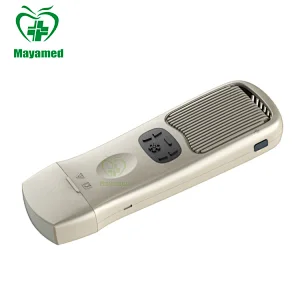

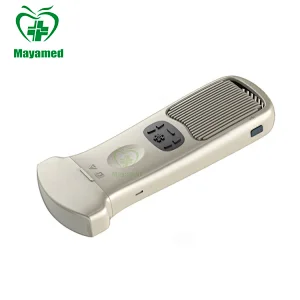

The Picture of MY-A010L Pocket Wireless Changeable Head Ultrasonic Probe
*Excellent image quality *Low-Power solution Never overheat
*Stable wireless connection *Long continuous scan time
*Pocket Ultrasound System *Humanized operation design

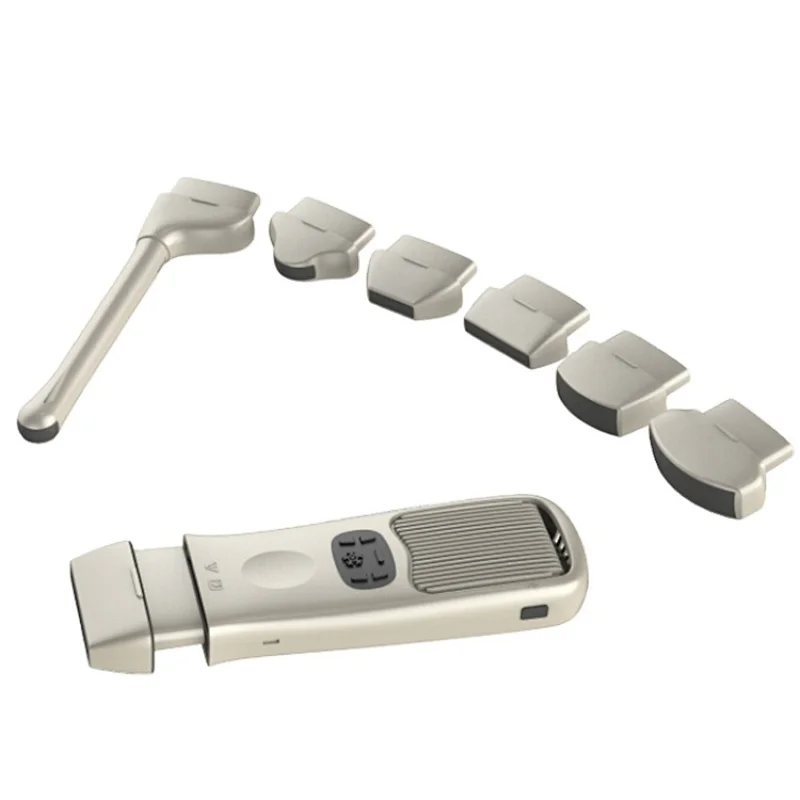

Various Probe Options
Clinical Images
