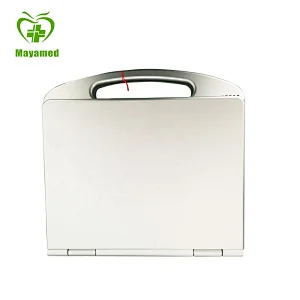

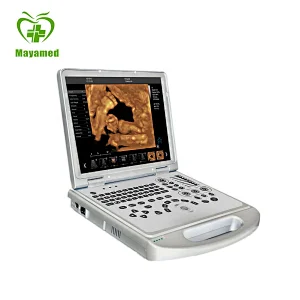

MY-A024B-N Portable advanced imaging technology Laptop CW Color Doppler Ultrasound Scanner
MY-A024B-N Portable advanced imaging technology Laptop CW Color Doppler Ultrasound Scanner
MY-A024B-N Portable advanced imaging technology Laptop CW Color Doppler Ultrasound Scanner
MY-A024B-N Portable advanced imaging technology Laptop CW Color Doppler Ultrasound Scanner
MY-A024B-N Portable advanced imaging technology Laptop CW Color Doppler Ultrasound Scanner

MY-A024B-N Portable advanced imaging technology Laptop CW Color Doppler Ultrasound Scanner

Model NO.: MY-A024B-N
  • Type:Doppler Ultrasound Equipment
  • Place of Origin:CN
  • Instrument classification:Class II
  • Brand Name:MAYA
  • Model Number:MY-A024B-N
  • Product name:Color Doppler Ultrasound Scanner
  • Display:15 inch LED medical display
  • Operation interface:English (more languages as option)
  • Display mode:B,B+B,4B,B+M,M,C,PW,CW,4D,B/C,B/C/PW,B/PW
  • Focus:4 segments
  • Image processing:Up/Down, Left/Right, Angular variation, Reverse
  • Gray scale:256 levels
  • Max display depth:320mm
  • External interface:Video, USB, DICOM 3.0
  • Weight:NW: 6.3kg; GW: 15kg
Product Description

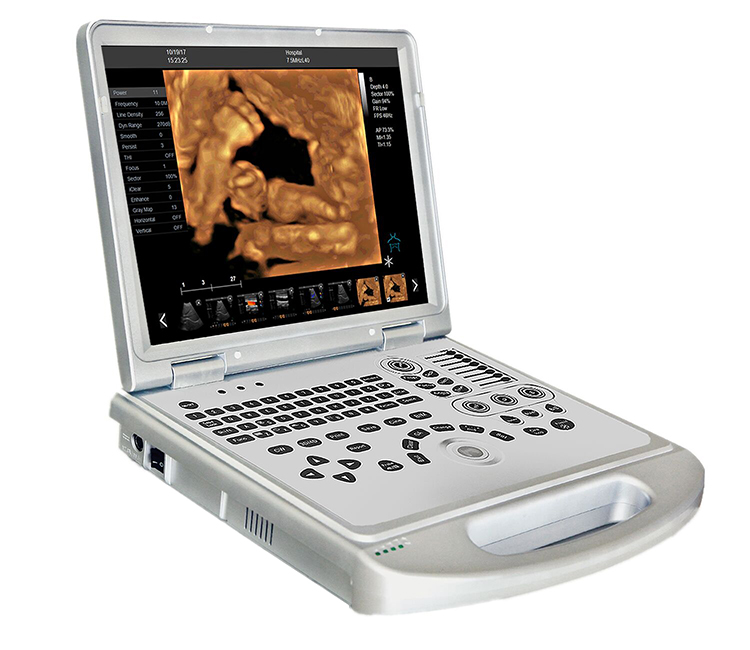

MY-A024B-N Portable advanced imaging technology Laptop CWColor Doppler Ultrasound Scanner


Specifications of MY-A024B-N Laptop Color Doppler

Windows 7 embedded operating platform, solid-state hard drive data storage,safe and reliable and boot quickly
Adopt the international standard lithium battery: 18650mAH
Backup time ≥ 3H. Battery capacity 173wh.

Display15 inch LED medical display
Probe connectorSingle 1
Operation interfaceEnglish (more languages as option)
Display modeB,B+B,4B,B+M,M,C,PW,CW,4D,B/C,B/C/PW,B/PW
Focus4 segments
Body mark ≥57
Image processingUp/Down, Left/Right, Angular variation, Reverse
MeasurementDistance, circumference, area, volume, heart rate, diameter stenosis rate, area stenosis rate, angle, rhythm, speed.
ApplicationAbdomen,cardiac,skeletal muscle, early obstetrics, middle and late obstetrics, pelvic (uterine attachment) , small parts, urology, peripheral blood vessels, GW&EDD, fetal weight.
Character displayDate, time, name, sex, age, doctor, hospital, annotation (full screen character editing)
Cine loop≥ 1200 frames, continuous playback or view one by one.
StorageProbe parameter, cine loop, measuring result, report can be saved and transferred to external storage device
Gray scale256 levels
Puncture guideAvailable
Gravel positioningAvailable
Dynamic range0-270dB
TGC control8 segments
Pre-processingVariable aperture, dynamic apodization, dynamic digital filtering, multi-beam parallel processing technology, THI and so on.
Post-processingDynamic range 0-270DB, black and white afterglow 0-7, smoothing 0-7, gray curve 1-16, frame correlation, SHI, sound power, wall filter, cumulative number, baseline adjustment, sampling frame adjustment , spectral sampling volume, spectral sampling volume angle, the PRF (pulse repetition frequency) and so on.
Blind zone≤4mm
Max display depth320mm
Geometric accuracyhorizontal ≤ 5%, vertical ≤ 5%
Resolution lateral≤ 2mm, axial ≤ 1mm
External interfaceVideo, USB, DICOM 3.0
Display magnification16 kinds
Frame rate5-1016fps
Scanning range5% - 100%
Gain adjustment Overall gain: 0 ~ 100%, PW gain: 0-15, CFM gain: 0-15
Image optimization6 level adjustable
Smoothing8 level adjustable
Edge enhancement8 level adjustable
PRF16 level adjustable
Gray scale curve16 level adjustable
Acoustical power15 level adjustable
WeightNW: 6.3kg GW: 15kg
Packing size60*50*27cm

Probe frequency range:
3.5MHZ convex probe: 2.0, 3.0, 3.5, 4.0, 5.5Mhz
6.5MHZ trans-vaginal Probe: 5.0, 6.0, 6.5, 7.5, 9.0Mhz
3.0MHZ Phased array probe: 2.0, 3.0, 3.5, 4.0, 5.0Mhz
7.5MHZ High frequency Linear Probe: 6.0, 6.5, 7.5, 10.0, 12.0Mhz
Volume probe: 2.0, 3.0, 3.5, 4.0, 5.5Mhz
Micro-convex probe R11: 2.0, 3.0, 3.5, 4.0, 5.5, 6.5, 7.5, 10.0 Mhz
Micro-convex probe R20: 5.0, 6.0, 6.5, 7.5, 9.0Mhz
