- Remote control exposure distance:≥ 6m
- Max. exposure field:450*450 mm / when distance 1000mm
- Internal resistance of power supply wire:≤1Ω
- Power capacity:Greater than 5kvA
- Current (Max., instantaneous):<24A
- Frequency:50 Hz
- Voltage:Single Phase AC 180~250V
- N.W.:110kg
- G.W.:200kg
- Packing Dimension:135cm*75cm*150cm
- Properties:Medical X-ray Equipments & Accessories
- Instrument classification:Class II
- Warranty:1 Year
- After-sale Service:Online technical support
- Place of Origin:CN;GUA
- Brand Name:MAYA
- Model Number:MY-D023
Maya Medical have rich experience to build up the new hospital and new clinic , our one-stop service is your best choice !
We concentrate on African market and set up two branches in Nigeria and Madagascar. Meanwhile, we have already established after-sale service office in Lagos Nigeria, Islambad Pakistan and also Neirobi Kenya.

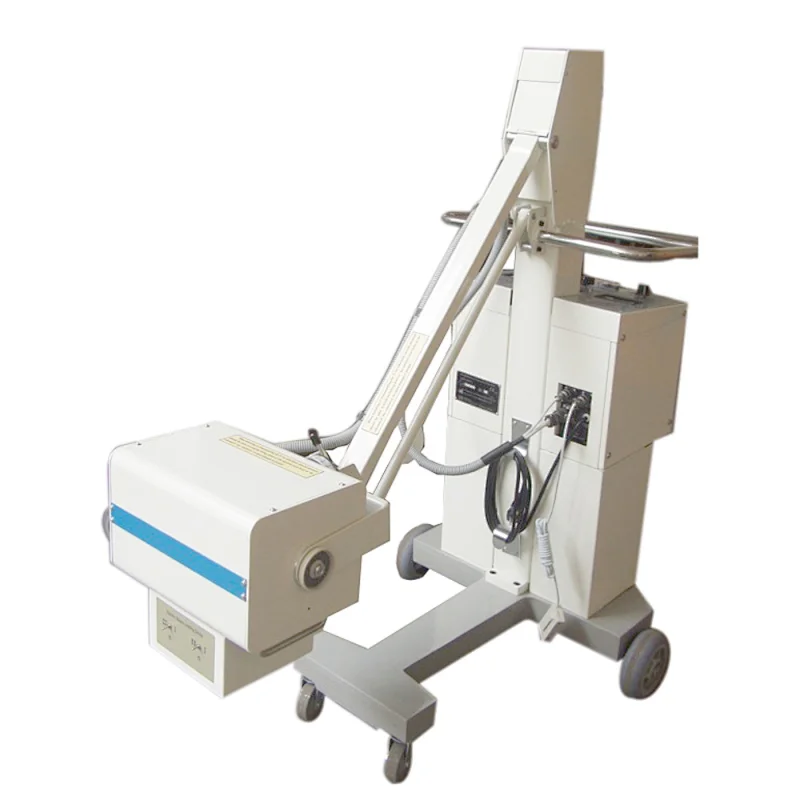

MY-D002B medical mobile x ray scanner china x-ray machine
Featuresof X-ray Machine
1. Used for X-ray radiography in wards, especially in orthopaedic
wards.
2. Single focus point, high voltage silicon stack full-wave rectification.
3. kV, mA and s capacity interlocking control system, overload
indicating system.
4. Wired manual exposure & remote control exposure
5. Sound and light indication during the course of exposure.
Specification of X-ray Machine
| Main Technical Specifications | |||||||||
| Power Supply | Voltage | Single Phase AC 180~250V | |||||||
| Frequency | 50 Hz | ||||||||
| Current (Max., instantaneous) | <24A | ||||||||
| Power capacity | greater than 5kvA | ||||||||
| Internal resistance of power supply wire ≤1Ω | |||||||||
| Maximum rated capacity | Current(mA) | Voltage (kvp) | Exposure time(s) | ||||||
| 30 | 90 | 0.063~5.0 | |||||||
| 40 | 90 | 0.063~3.2 | |||||||
| 80 | 0.063~4.0 | ||||||||
| 50 | 90 | 0.063~1.0 | |||||||
| 80 | 0.063~3.2 | ||||||||
| Timer | 0.08s to 6.3s, in 20 shifts, LED display | ||||||||
| Max distance from tube focus to the ground | ≥1820 mm | ||||||||
| Min distance from tube focus to the ground | ≤550 mm | ||||||||
| Remote control exposure distance | ≥ 6m | ||||||||
| Max. exposure field | 350×350 mm (when distance between X-ray tube focus and film is 650 mm) | ||||||||
| Max. exposure field | 450×450 mm / when distance 1000mm | ||||||||
| Specification of x ray tube | XD3-3.5/100, stationary anode, focus 2.6 x 2.6 | ||||||||
