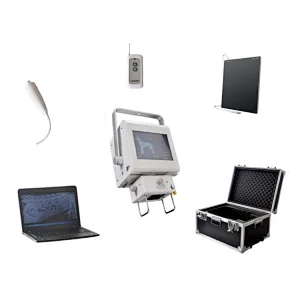

MY-D019D medical 10.4 inch touch screen 100mA mobile portable veterinary x-ray machine digital
MY-D019D medical 10.4 inch touch screen 100mA mobile portable veterinary x-ray machine digital
MY-D019D medical 10.4 inch touch screen 100mA mobile portable veterinary x-ray machine digital
MY-D019D medical 10.4 inch touch screen 100mA mobile portable veterinary x-ray machine digital
MY-D019D medical 10.4 inch touch screen 100mA mobile portable veterinary x-ray machine digital
MY-D019D medical 10.4 inch touch screen 100mA mobile portable veterinary x-ray machine digital
MY-D019D medical 10.4 inch touch screen 100mA mobile portable veterinary x-ray machine digital

MY-D019D medical 10.4 inch touch screen 100mA mobile portable veterinary x-ray machine digital

USD4,500.00 -USD32,000.00
  • Delivery:FOB
  • Minimum order quantity:1
  • Categories: Medical X-ray machine
    Model NO.: MY-D019D
    • Name:Portable X-ray Machine
    • Voltage:AC220V ± 22V
    • Power:5kW
    • kV Range:40~110kV
    • mA Range:20~100mA
    • mAs Range:0.2-200mAs
    • Working Frequency:≥40kHz
    • Exposure time:0.01S~4S
    • Focus:1.8mm
    • Inherent filtration:1mm Al/75Kv
    • Power Source:Electricity
    • Warranty:1 Year
    • After-sale Service:Online technical support
    • Material:metal
    • Shelf Life:1years
    • Instrument classification:Class II
    • Safety standard:none
    • Place of Origin:CN;GUA
    • Model Number:MY-D019D
    • Brand Name:Mayamed
    • Quality Certification:None
    Welcome To MAYA

    .jpg

    Maya Medical have rich experience to build up the new hospital and new clinic , our one-stop service is your best choice !

    We concentrate on African market and set up two branches in Nigeria and Madagascar. Meanwhile, we have already established after-sale service office in Lagos Nigeria, Islambad Pakistan and also Neirobi Kenya.

    Product Description

    MY-D019D medical 10.4 inch touch screen 100mA mobile portable veterinary x-ray machine digital

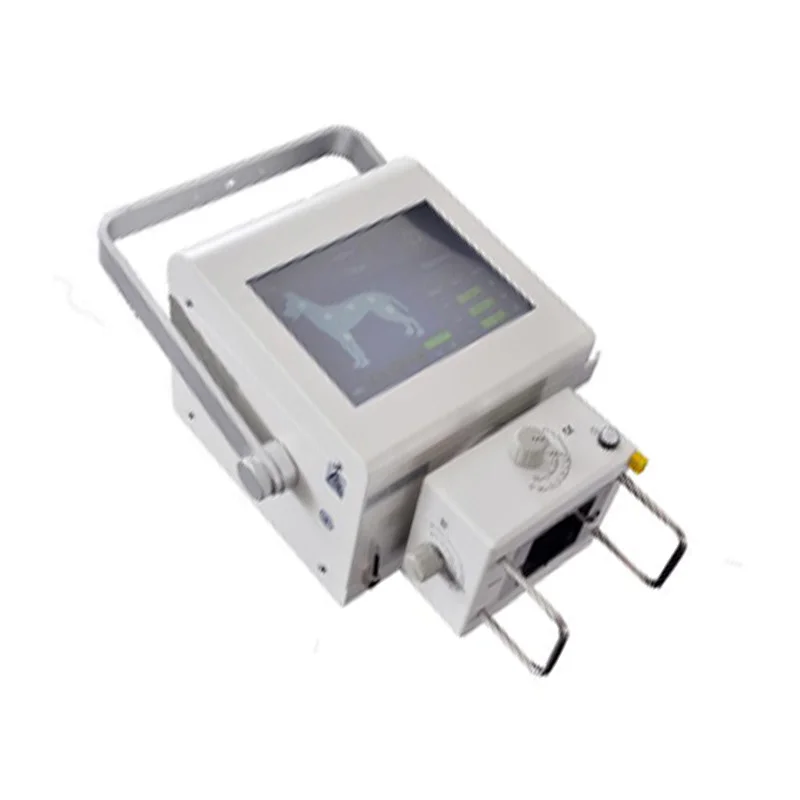

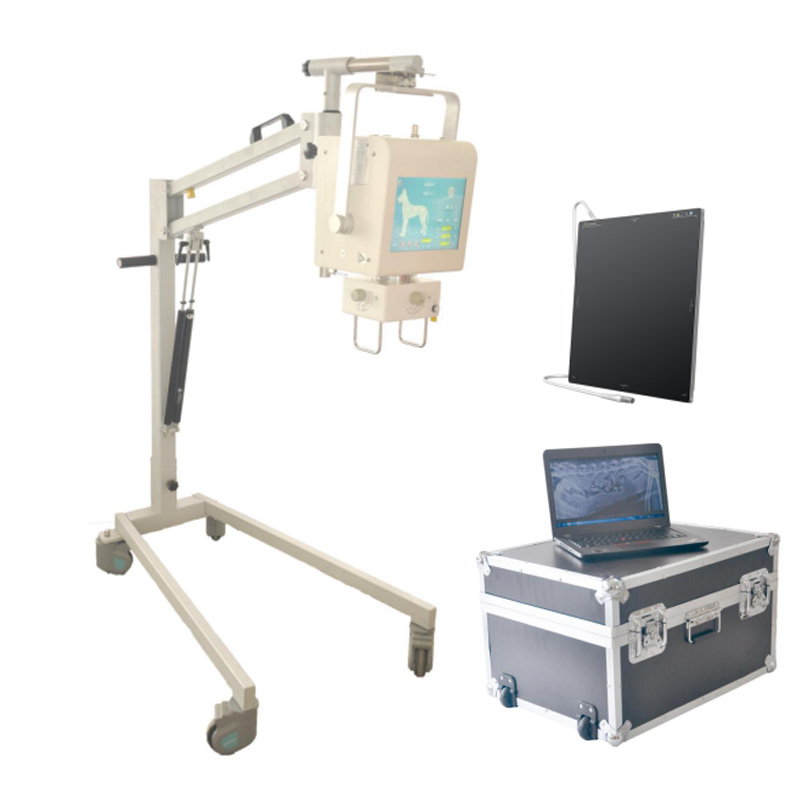

    Digital Portable X-ray System For Veterinary

    Main Component Tech Spe.

    Voltage

    AC220V ± 22V

    Generator

    Power

    5kW

    kV Range

    40~110kV

    mA Range

    20~100mA

    mAs Range

    0.2-200mAs

    Working Frequency

    ≥40kHz

    Exposure time

    0.01S~4S

    X-ray tube

    Anode heat storage

    56KHU

    Focus

    1.8mm

    Inherent filtration

    1mm Al/75Kv

    Light source

    LED

    Touch Screen

    Dimension

    10.4inch

    Physical Spe.

    Main Unit

    Weight

    19 kg

    Dimension

    290×265×230 mm

    Detailed Images


    -Profession Veterinary Acquisition Software

    Support different brand of X-ray generators

    Support Multi- languages

    Support RIS/PACS/DICOM Printer Connection

    Support professional tools

    -Professional and efficient DR workstation

    Patient management

    Image capture

    Image post-processing

    Print and storage


    - It can be widely used for equine/large animal,Companion,exotic and mixed animal practices,easy to use,ultra-durable,and create digital images of superior quality

    - Deft and concise

    - 6 periods of digital LED display

    - Failure self-protection, self-diagnosis

    - High precision control of tube voltage, tube current

    - 48 kinds of presupposed anatomy memory pattern choice

    - Accuracy control method of simulation and double digital loops

    - X-ray tube complete surrender by lead for protect X-ray leaking

    - Exposure by hand switch / remote control / touch screen
