- Product name:High frequency mobile c arm x ray machine price
- Application:X-ray Room .Radiography Department
- HF generator:120KV, 5KW , 40kHz
- Fluoroscopy mode:120kv 0.5~5mA
- Photography:120kv 1~250mAs
- X ray tube:Dual-focus rotating anode:0.3mm/0.6mm
- Radiography:20-80mA, max. 100mA
- Anode thermal capacity:150KJ/200kHu
- Power Source:Electricity
- Warranty:1 Year
- After-sale Service:Online technical support
- Shelf Life:1years
- Instrument classification:Class II
- Place of Origin:CN;GUA
- Model Number:MY-D035B-N
- Brand Name:Mayamed
- Quality Certification:N/A
- Safety standard:N/A
Maya Medical have rich experience to build up the new hospital and new clinic , our one-stop service is your best choice !
We concentrate on African market and set up two branches in Nigeria and Madagascar. Meanwhile, we have already established after-sale service office in Lagos Nigeria, Islambad Pakistan and also Neirobi Kenya.

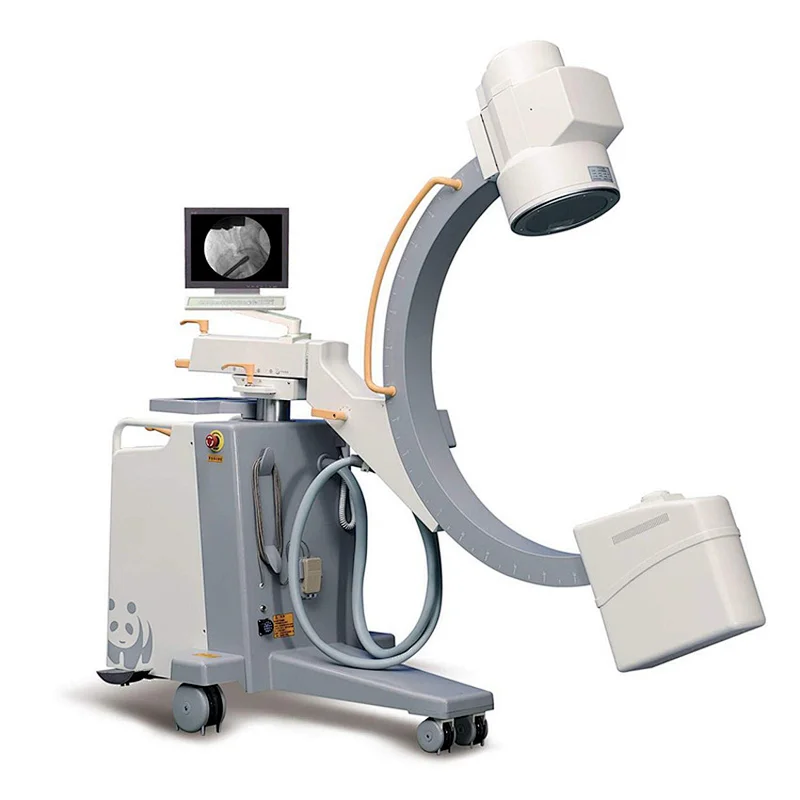

MY-D035B-N medical high frequency mobile digital c arm x ray machines for sale
1)With HF & HV generator,inverter,and High quality image intensifier, the x ray generator can work stably.It also
reduces the damage for the doctors caused by radiation.
2)10.4"LCD friendly interface control board: easy operation and can be rotated to 180°(L90°,R90°) Compared
with ordinary key board, our LCD display is not easy to be oxidized Besides, the trouble will be displayed in
Chinese, which will improve the efficiency of fault diagnosis.
3)Pulse and boost fluoroscope provides all kinds of size of patients with clear diagnosis.
4)With a steering handle, it can adjust the direction quickly when moving.And parallel movement function is also
5) Equipped with unique block line wheels, it can avoid accident when the machine moves.
6)Large free space in arc: the space can reach 800mm,which is convenient for operation.
7)9"/6"/4.5"three fields of vision:it facilitates diagnosis of partial enlargement.
8)CCD camera with rotation function:range of camera rotation:360°.
9)Original Korean linear slide rail can make the the movement of the machine flexibly.
10)Applied with Omron Relay, the noise can be reduced and the life time of the equipment can be increased.
HF generator120KV, 5KW , 40kHz
Fluoroscopy mode120kv 0.5~5mA
Pulsd fluoroscopy 120kv 0,5-5mA
Boost fluoroscopy 120kv 5~10mA;
X ray tubeDual-focus rotating anode:0.3mm/0.6mm
Image intensifier Japan Toshiba Brand
CCD camera Japanese Watt Brand, 360° rotation
5 Degree recursive Noise Reduction
Thousands of image data storage
Image conversing and rotating
Screen display with image comparison
Support “one click” print,print the image report
Equip with Dicom 3.0 network port
Support Dicom 3.0 standard data export function
Mechanical motion specifications
Verticaltravel:0-400mm Horizontaltravel:0~200mm(electric for optional)
Rotation about horizontal axis:±180° (electric for optional)
Slipping along the circular arcrail (electric for optional)
Distance of focal spot to image generator(SID):1000mm
Depth in arm≥650mm
Mobile stand :1800mm*800mm*1850mm
Image system: 750mm*530mm*1680mm
High resolution CCD camera:1set
9” image intensifier:1set
24'' LCD high definition display 1 set
