- Name:Panoramic Dental x ray machine
- input voltage:220V±10% 50Hz±1Hz fuse≤1Ω
- fuse:15A
- focus spot size:0.5mmX0.5mm
- zoom in:1.20-1.30
- total filtering:2.5mm Al
- exposure time:panoramic 14s TMJ 3sX4
- film size:150x300mm
- lifting device:manual electromagnetism locked
- net weight:160kg
- Power Source:Electricity
- Warranty:1 Year
- After-sale Service:Online technical support
- Material:metal
- Shelf Life:1years
- Instrument classification:Class II
- Place of Origin:CN;GUA
- Model Number:MY-D043A
- Brand Name:Mayamed
- Quality Certification:N/A
- Safety standard:N/A
Product Description
MY-D043A medical hospital equipment panoramic dental x ray machine
Input voltage:220V±10% 50Hz±1Hz fuse≤1Ω
Input power:instantaneous loading:2500w standby mode:110W 0.5A
Fuse:15A(φ6x30)
Anode voltage:auto 60KV-88KV manual 60KV-88KV
Anode current :panorama 12mA±20% TMJ 12mA±20%
X-ray tube :X-ray generator :high-frequency,DC generator
Focus spot size:0.5mmX0.5mm
Zoom in:1.20-1.30
Total filtering:2.5mm Al
Exposure time:panoramic 14s TMJ 3sX4
Film size:150x300mm
X-ray cassette :meisheng150mmX100mm
X-ray intensifying screen :MEISHENG MSL-40

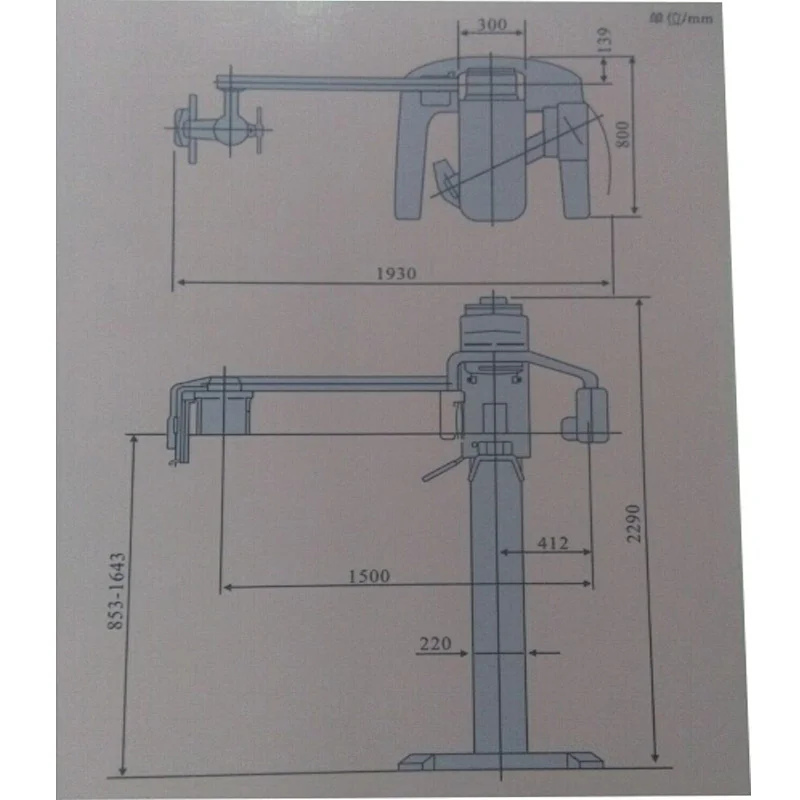

Vertical range of tube head:853mm-1643mm
Lifting device:manual electromagnetism locked
Net weight:160kg

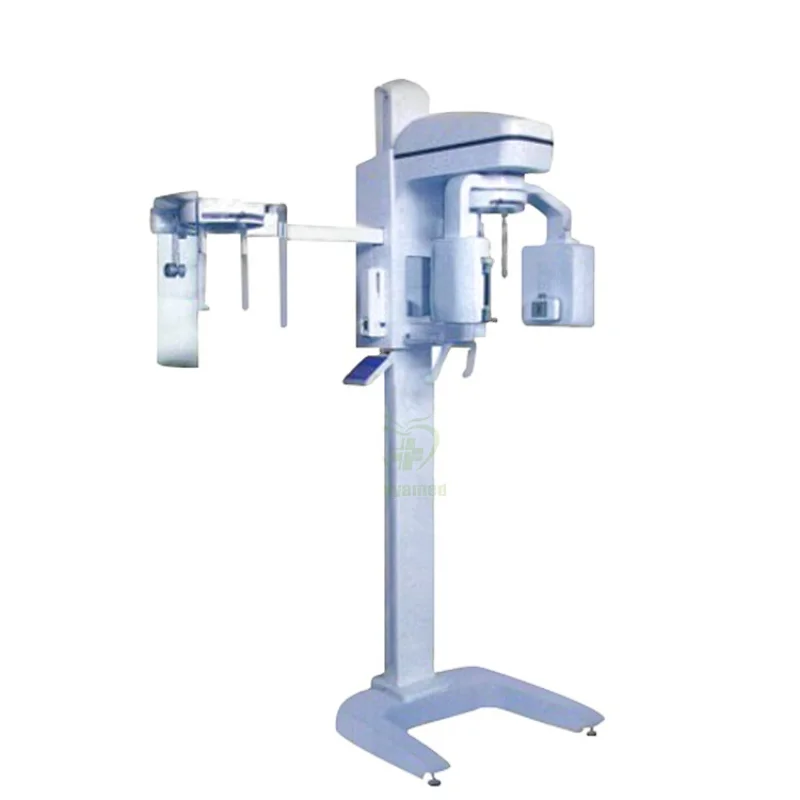

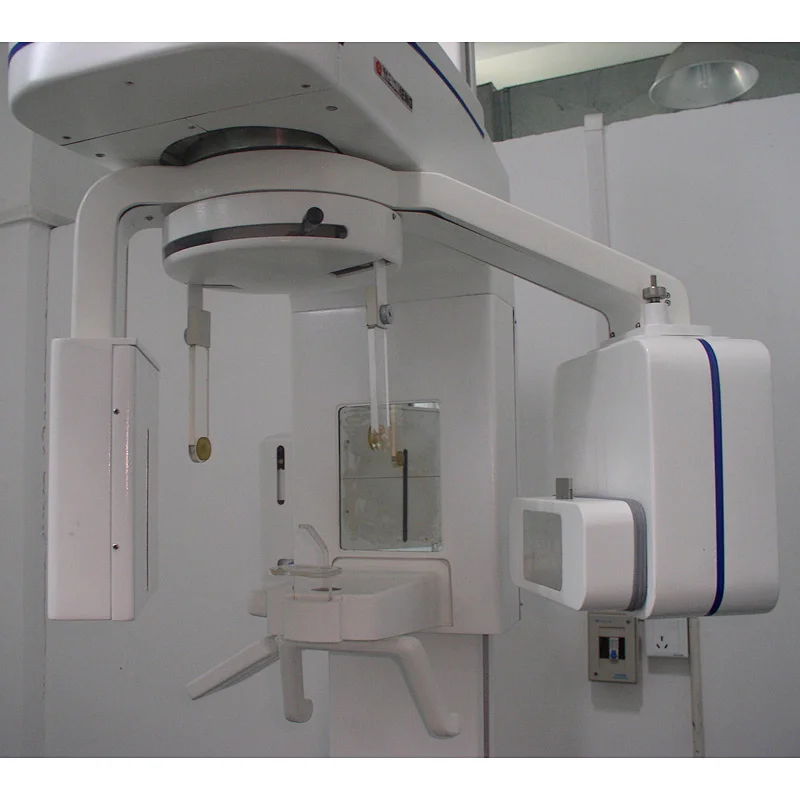

The Picture of MY-D043A Panoramic Dental x ray machine
