- Product name:Medical X-Ray Machine
- Working Frequency:≥30kHz
- Allowed Frequency Variation:50Hz/60Hz ± 1Hz
- Allowed Internal Resistance:380V: 0.5Ω
- Time:2ms ~ 6300ms
- Radiography Tube Current:10mA ~ 630mA
- Radiography Tube Voltage:40kV ~ 150kV
- Power:AC380V ± 38V
- Item:DR Xray Machine
- Power Source:Electricity
- Warranty:1 Year
- After-sale Service:Online technical support
- Shelf Life:1years
- Instrument classification:Class II
- Place of Origin:CN;GUA
- Model Number:MY-D049J
- Brand Name:Mayamed
- Material:N/A
- Quality Certification:N/A
- Safety standard:N/A
Maya Medical have rich experience to build up the new hospital and new clinic , our one-stop service is your best choice !
We concentrate on African market and set up two branches in Nigeria and Madagascar. Meanwhile, we have already established after-sale service office in Lagos Nigeria, Islambad Pakistan and also Neirobi Kenya.

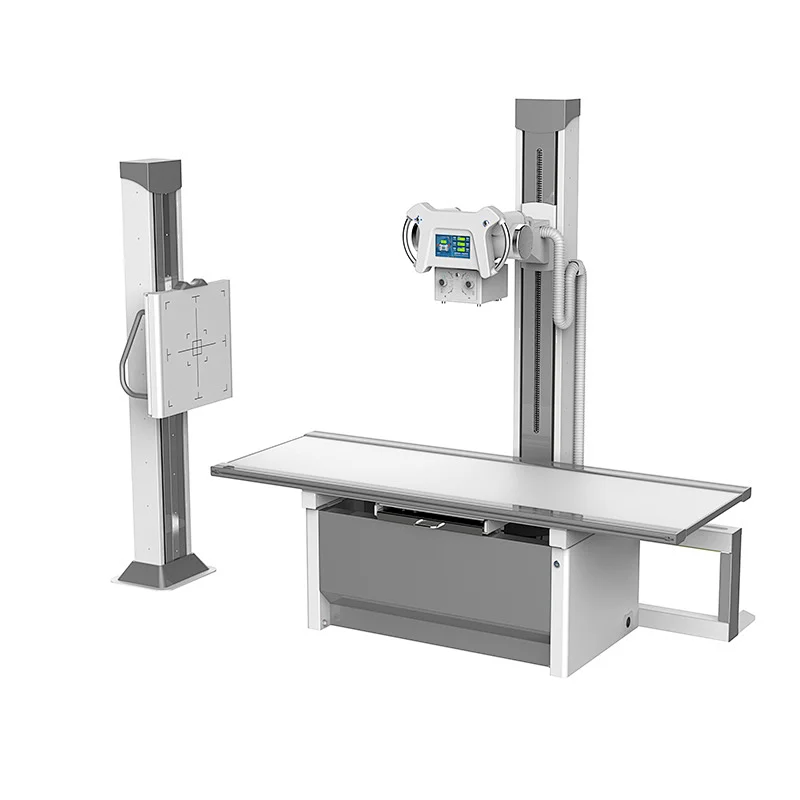

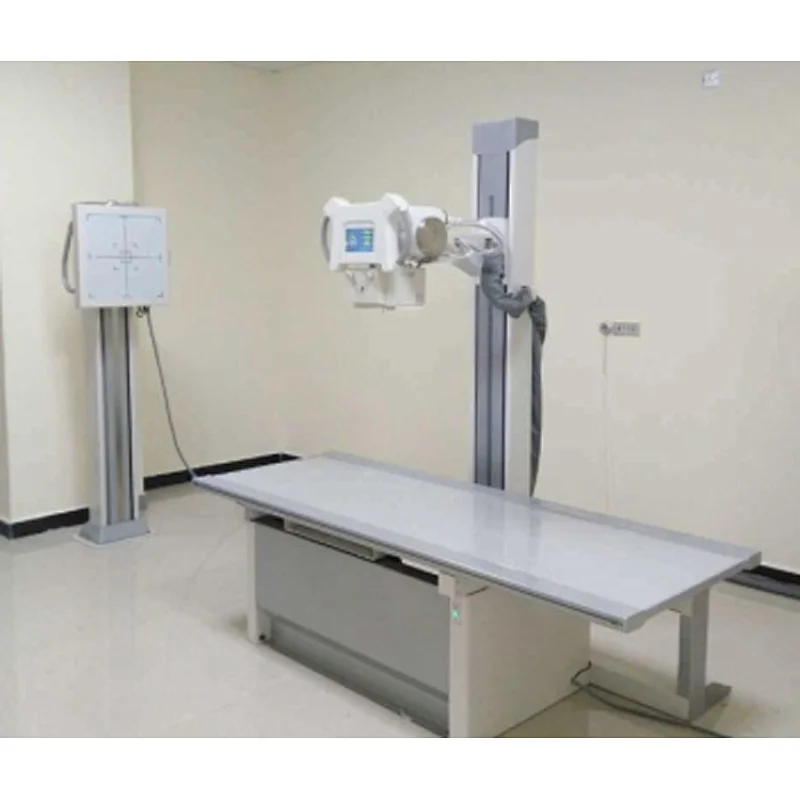

MY-D049J High frequency xray machines medical digital x-ray radiography system
Specification of X-ray Machine

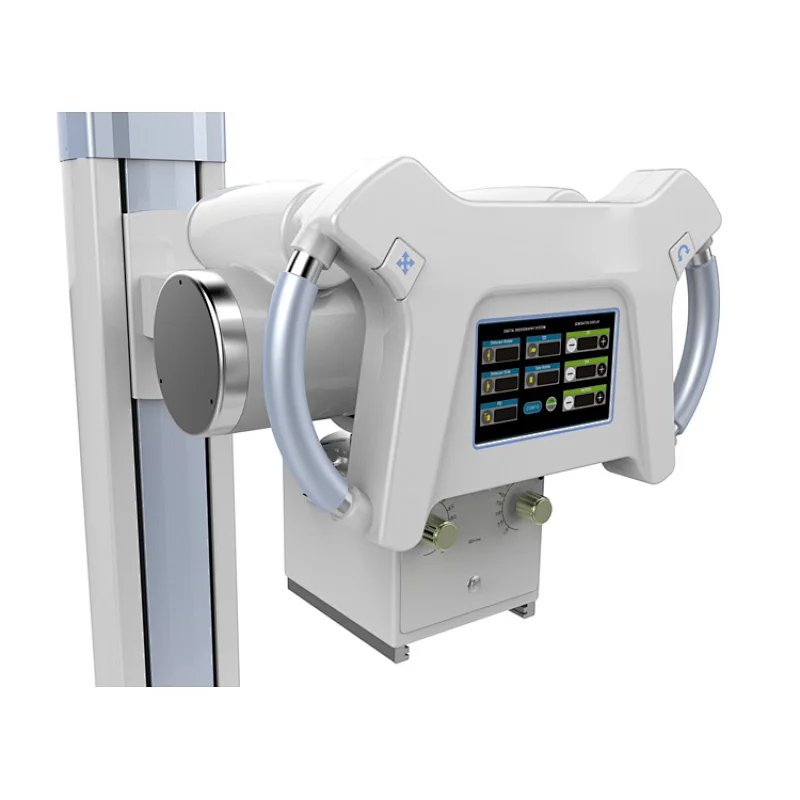

High Frequency High Voltage X-ray Generator
X-ray Tube Assembly Made-in-China
Collimator
Digital Detector Rayence 1717SGC/SCC Made-in-Korea
DR Machine Frame
Radiography Table
Computer and LCD DCSM1F/ML2002
Synchronous box
High Voltage Cable 75kV (length: 8m)
Grid (Brand:JPI) 100cm and 180cm Made-in-Korea
Power AC380V ± 38V
Radiography Tube Voltage 40kV ~ 150kV
Radiography Tube Current 10mA ~ 630mA
Time 2ms ~ 6300ms
Allowed Internal Resistance 380V: 0.5Ω
Allowed Frequency Variation 50Hz/60Hz ± 1Hz
Working Frequency ≥30kHz
