- Product name:Dental panoramic / cephalometric / intra oral films scanner
- Scanning area:8.0"x 12"
- Scanning mode:8 / 12 / 16-bit grayscale
- Dimensions (L x W x H):576 x 297 x 118 mm
- Weight:6.4 kg
- Light source:LED
- Connectivity:Hi-Speed USB (USB 2.0)
- Optical density:4.0 Dmax
- Three templates Size:0, 1, 2, 3, 4, Panoramic and Cephalometric films
- Scanning speed:12 seconds @ 300 dpi, 8"x 12", 6"x 12"(Pano)
- Power Source:Electricity
- Warranty:1 Year
- After-sale Service:Online technical support
- Shelf Life:1years
- Instrument classification:Class II
- Place of Origin:CN;GUA
- Model Number:MY-D061A
- Brand Name:Mayamed
- Material:N/A
- Quality Certification:N/A
- Safety standard:N/A
Maya Medical have rich experience to build up the new hospital and new clinic , our one-stop service is your best choice !
We concentrate on African market and set up two branches in Nigeria and Madagascar. Meanwhile, we have already established after-sale service office in Lagos Nigeria, Islambad Pakistan and also Neirobi Kenya.

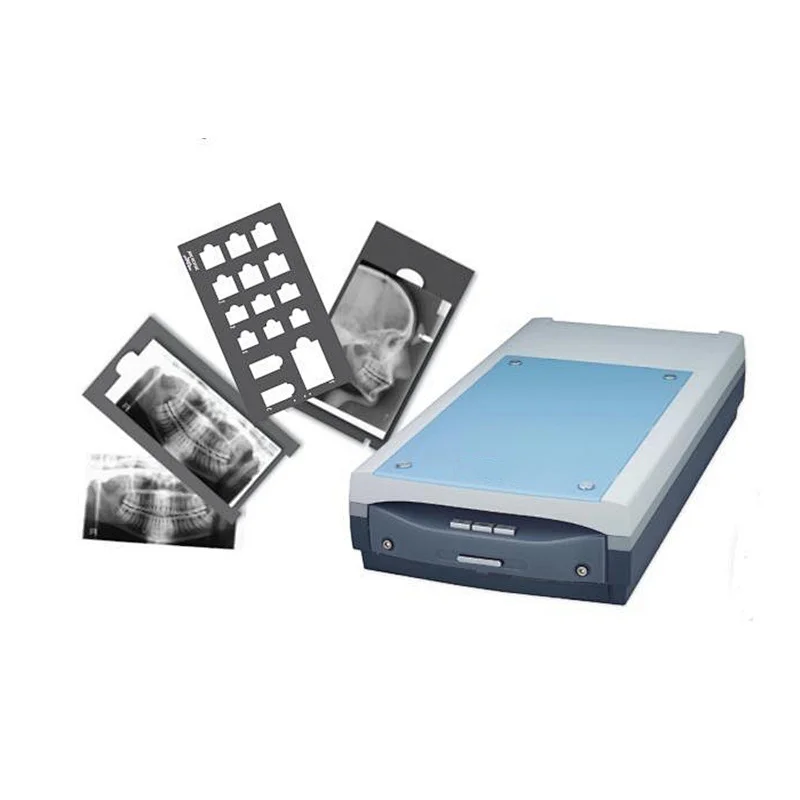

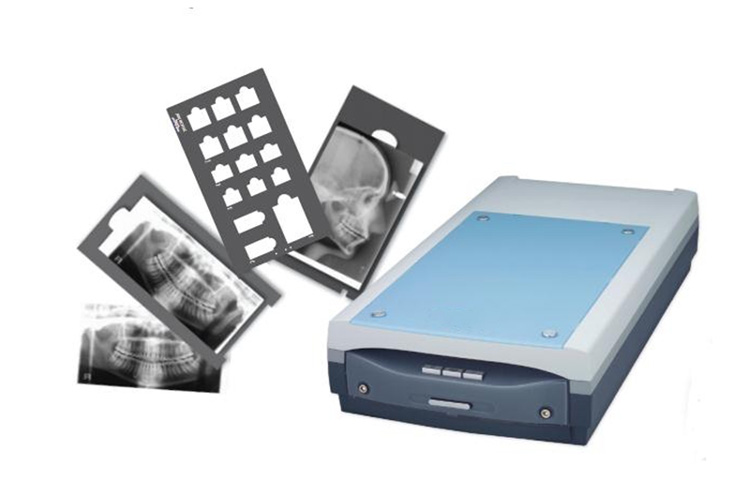

MY-D061A led light source dental panoramic / cephalometric / intra oral films scanner

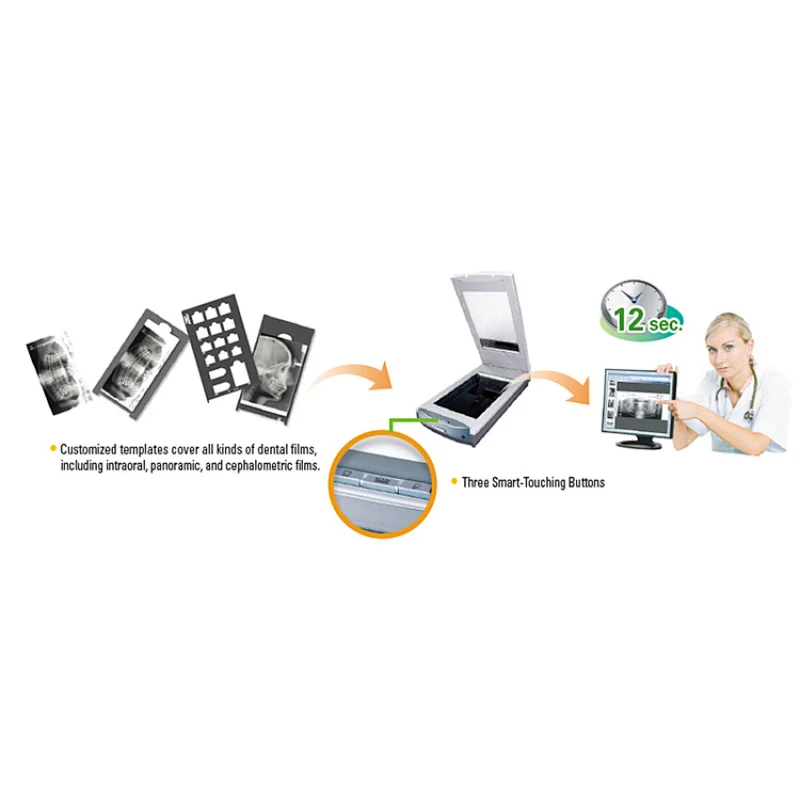

Three templates Size 0, 1, 2, 3, 4, Panoramic and Cephalometric films
Scanning area 8.0"x 12"
Scanning speed 12 seconds @ 300 dpi, 8"x 12", 6"x 12"(Pano)
Scanning mode 8 / 12 / 16-bit grayscale
Optical resolution Default 300 dpi, up to 4800 dpi (5 µm spot size, 94 lp/mm)
Optical density 4.0 Dmax
Connectivity Hi-Speed USB (USB 2.0)
Dimensions (L x W x H) 576 x 297 x 118 mm
Weight 6.4 kg
Power source 100 to 240 VAC, 47 to 63 Hz, 30 Watts
Light source LED
System requirements :
• CD-ROM drive (for installing software)
• 2 GB RAM or more
• Pentium IV or higher With Hi-Speed USB (USB 2.0) port
• Microsoft Windows 7 / Vista / XP / 2000
Certifications SFDA, BSMI, CB, CCC, CE, ETL, FCC, RoHS
