Main Features

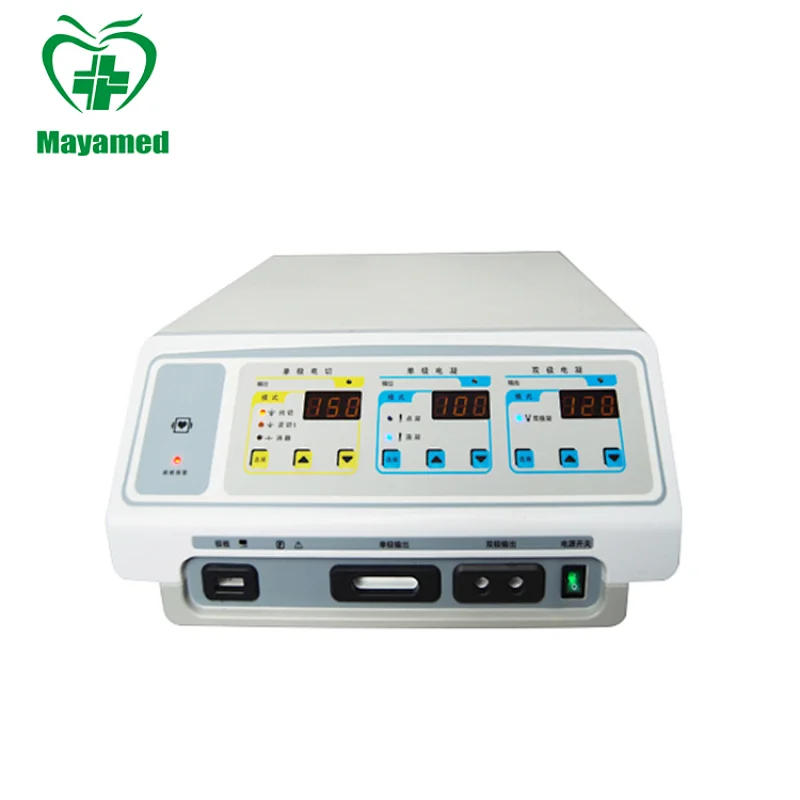

*Max 150W Radiofrequency Surgical Unit, with mono-polar and bipolar function.
*Six working modes: pure cut, blend, ablation, spray coag, forced coag, bipolar coag.
*Wide clinical applications, such as the general surgery, dermatology, orthopedic surgery, cardiology, gynecology, , oncology, neurosurgery, ophthalmology, ENT, Stomatology, etc.
*Microprocessor controlled, digital display. With audible and visual indicators and errors codes during the process of outputting.
*Both hand and foot controlled.
*Separate power display and outlet socket for mono-polar cut, mono-polar coag,and bipolar coag, each output can be individually configured.
*It redefines the surgical results with 4MHz radio wave technology, minimizes heat dissipation and cellular alteration while cutting and coagulation soft tissues.
*Low temperature, non-carbide, no adhesion, Less bleeding, quick recover.
*Protection against over-voltage and over-current.
*Convection refrigeration without ventilator.
*Mounted on a 4 wheels cart(optional).

Technical Specifications
Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)
Operating frequency: a)Monopolar:4MHz b) Bipolar:1MHz
Power rating: 1100VA±10%

Six working modes:
*Mono-polar Cut
a) Pure cut:1W~150W( Load 700Ω)
b) Blend:1W~100W(Load 700Ω)
c) ablation:1W~100W(Load700Ω)
*Mono-polar Coag
d) Spray Coag:1W~80W( Load 700Ω)
e) Forced Coag:1W~100W( Load 700Ω)
*Bipolar
f) Bipolar Coagulation: 1W~120W( Load 200Ω)
*Power Consumption: ≤1100VA

Configuration Sheet
Electrosurgical Pencil 5pcs
Neutral Electrode (Antenna board) 1pcs
Neutral Electrode cable 1pcs
Footswitch 1set
Bipolar Forceps 1pcs
Bipolar forceps cable 1pcs
Electrodes 10pcs
