- Name:Portable X-ray Machine
- Voltage:AC220V ± 22V
- Power:5kW
- kV Range:40~110kV
- mA Range:20~100mA
- mAs Range:0.2-200mAs
- Working Frequency:≥40kHz
- Exposure time:0.01S~4S
- Focus:1.8mm
- Inherent filtration:1mm Al/75Kv
- Power Source:Electricity
- Warranty:1 Year
- After-sale Service:Online technical support
- Material:metal
- Shelf Life:1years
- Instrument classification:Class II
- Safety standard:none
- Place of Origin:CN;GUA
- Brand Name:Mayamed
- Model Number:MY-D019D
- Quality Certification:None
Maya Medical have rich experience to build up the new hospital and new clinic , our one-stop service is your best choice !
We concentrate on African market and set up two branches in Nigeria and Madagascar. Meanwhile, we have already established after-sale service office in Lagos Nigeria, Islambad Pakistan and also Neirobi Kenya.

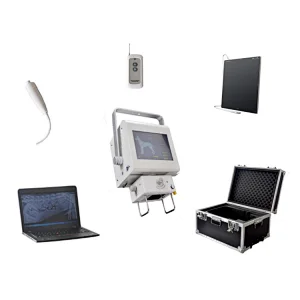

MY-D019D stand optional medical vet portable mobile digital x-ray scanning machine for veterinary
DigitalPortable X-ray System For Veterinary
Main Component Tech Spe. | ||
Voltage | AC220V ± 22V | |
Generator | Power | 5kW |
kV Range | 40~110kV | |
mA Range | 20~100mA | |
mAs Range | 0.2-200mAs | |
Working Frequency | ≥40kHz | |
Exposure time | 0.01S~4S | |
X-ray tube | Anode heat storage | 56KHU |
Focus | 1.8mm | |
Inherent filtration | 1mm Al/75Kv | |
Light source | LED | |
Touch Screen | Dimension | 10.4inch |
Physical Spe. | ||
Main Unit | Weight | 19 kg |
Dimension | 290×265×230 mm | |
-Profession Veterinary Acquisition Software
Support different brand of X-ray generators
Support Multi- languages
Support RIS/PACS/DICOM Printer Connection
Support professional tools
-Professional and efficient DR workstation
Patient management
Image capture
Image post-processing
Print and storage

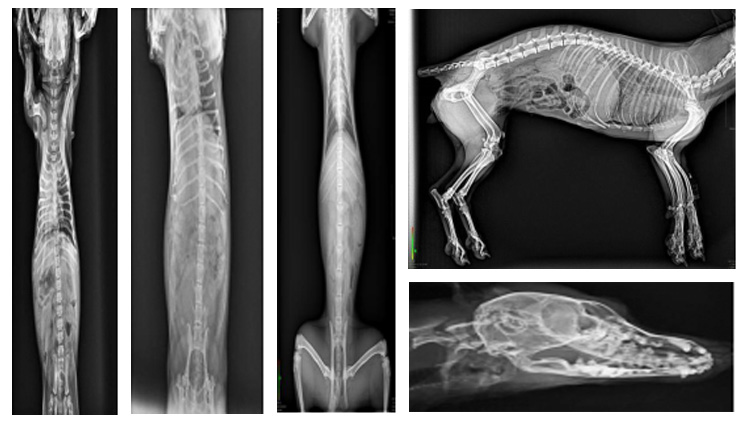

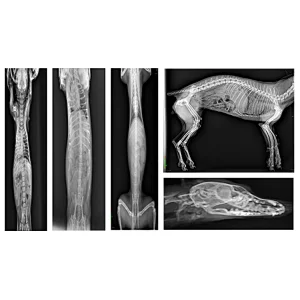

-It can be widely used for equine/large animal,Companion,exotic and mixed animal practices,easy to use,ultra-durable,and create digital images of superior quality
- Deft and concise
- 6 periods of digital LED display
- Failure self-protection, self-diagnosis
- High precision control of tube voltage, tube current
- 48 kinds of presupposed anatomy memory pattern choice
- Accuracy control method of simulation and double digital loops
- X-ray tube complete surrender by lead for protect X-ray leaking
-Exposure by hand switch / remote control / touch screen
