- Type:Portable Ultrasonic Diagnostic Devices
- Scan mode:Electronic Convex or linear array scanning
- Frequency:convex probe 3.5/5.0MHz. linear probe 7.5/10.0MHz
- Elements:80 - 96 elements
- Scanning Depth:25 - 280mm , Adjustable
- Supporting system:iOS, Android
- Screen:Smart phone or tablet screen
- Display mode:B, B/M
- Battery working time:3 - 4 hours
- Size:156mm*60mm*24mm
- Power Source:Electric
- Warranty:1 Year
- After-sale Service:NONE
- Shelf Life:1years
- Quality Certification:ce
- Instrument classification:Class II
- Safety standard:none
- Place of Origin:CN;GUA
- Brand Name:MAYA
- Model Number:MY-A010J
- Material:N/A
2 in 1 double head portable waterproof wireless ultrasounder probe iOS Android type Mini ultrasound scanner
Consist by two head(can select convex, linear, microconvex, transvaginal), suit for more application same time.
And lower cost than buy two probe that only one head.
Middel key: One second click for freeze, 5 second click for change work head, 10 second click for power off.
Application: first aid, clinical, outdoor and veterinary examinations.
Product applications:
120 Emergency center / ambulance: visceral injury, internal hemorrhage, pneumothorax, hydrothorax, cardiac cardiovascular abnormalities, thrombus, fracture, etc.
Specifications:
- Scan mode: Electronic Convex or linear array scanning;
- Frequency: convex probe 3.5/5.0MHz. linear probe 7.5/10.0MHz
- Elements: 80 - 96 elements
- Scanning Depth: 25 - 280mm , Adjustable
- Field of view(convex array): 80 degree
- Screen: Smart phone or tablet screen
- Supporting system: iOS, Android.
- Display mode: B, B/M
- f rame rate: 12f/s
- Image gray scale: 256 level
- Image /video Storage: Store on mobile phones,Tablet PC
- Measure: distance, area, obstetrics and other
- Power: by built - in lithium battery , 4200mAh
- Power consumption: 10W (unfreeze) /4W (freeze)
- Battery working time: 3 - 4 hours
- Size: 156mm×60mm×24mm
- Net Weight: 250 gram
Standard Configuration:
- wireless probe device 1 Unit

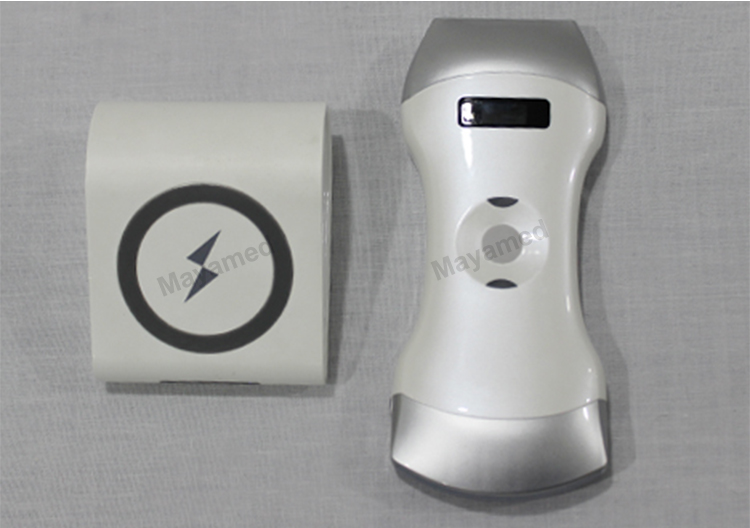

- Built - in Battery, wireless charging pad
- User Manual copy
Packaging
Carton box: 7*9*14cm
GW: 0.8KG
NW: 250g

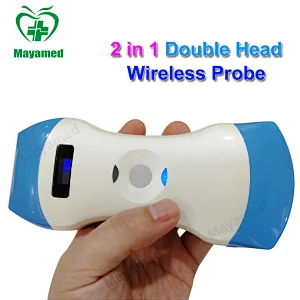

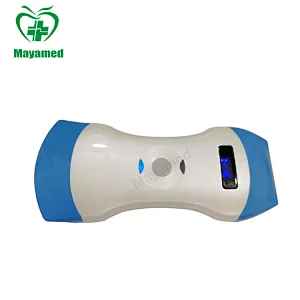

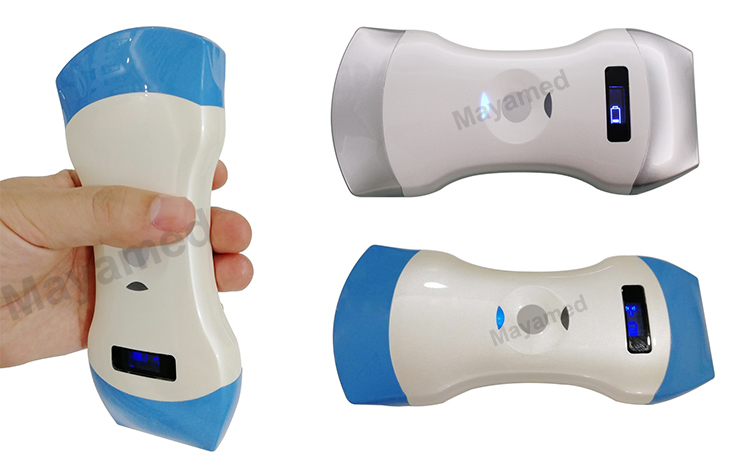

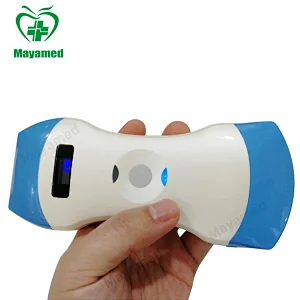

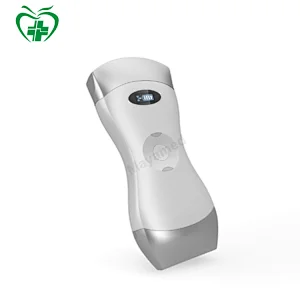

Pictures for 2 in 1 double head waterproof wireless ultrasounder probe type Mini ultrasound scanner
