- Type:Portable Ultrasonic Diagnostic Devices
- Scanning mode:Convex/Linear/Trans-vaginal/Trans-rectal
- Display modes:B, B+B, B+M, M, 4B
- Scanning depth:240mm
- Gray scales:256
- Image conversion:up/down, left/right, black/white
- scanning depth:>=240mm
- Power supply:AC 110V-240V, 50HZ/60HZ
- General menu:Distance, Area, Volume, Angle, Ellipse
- Wide application:abdomen, OB/GYN, urology, cardiology, small parts etc
- Power Source:Electricity
- Warranty:1 Year
- After-sale Service:Online technical support
- Shelf Life:1years
- Quality Certification:ce
- Instrument classification:Class I
- Safety standard:none
- Place of Origin:CN;GUA
- Model Number:MY-A001-N
- Brand Name:MAYAMED
- Material:N/A
MY-A001-N New Arrival Digital Portable Ultrasound Scanner with standard convex probe
Main Features:
Powerful measurement & calculation software packages
8-Segment TGC Trackball adjustment
10 inch LED monitor
OB measurements: BPD, GS, CRL, FL, AC, HC, etc
Permanent function of image store: 32 images
Back-lit keyboard
2 probe connectors
Probe automatic identification
Main Technical Specification:
Scanning mode: Convex/Linear/Trans-vaginal/Trans-rectal;
Display modes: B, B+B, B+M, M, 4B;
Scanning depth: 240mm;
Gray scales: 256;
Body marks: 33;
Function of image magnification: image zoom (real-time status under B mode), up to 5 times (area); local amplification function which can be enlarged under the real-time and froze;
Image conversion: up/down, left/right, black/white;
Function of puncture guide;
Max dynamic range>=100db;
Detecting depth>=190mm, scanning depth>=240mm;
The geometric location accuracy: vertical<=5%; lateral<=5%; blind spot: <=4mm;
Vertical resolution: <=1mm (depth<=130mm) < =2mm (130mm
Lateral resolution: <=1mm (depth<=130mm) < =2mm (130mm
Gamma: 4 gray scale Gamma transform function;
Variety of focus selection and multi-stage dynamic focusing with 4 transmit focus; support to launch multi-focus combination;
Built-in pseudo color processor, Pal-D and VGA video output, can connect external screen monitors, color monitors, VCRs, video image printer and other equipment.
Fixed characters and real-time clock and calendar display;
Software reset function;
Printer function: can connect laser printer and Video printer directly;
Comment: Date, Name, Sex, Age, Hospital, Annotation;
Zooming: *1.0, *1.2, *1.5, *2.0;
Port: USB 2.0, VGA, Video connector;
Wide application: abdomen, OB/GYN, urology, cardiology, small parts etc;
USB Function of image store: more than Sixteen thousand images;
Power supply: AC 110V-240V, 50HZ/60HZ;
Probe connector: 2;
USB/VGA/ print ports;
Video connector;
Measurement:
General menu: Distance, Area, Volume, Angle, Ellipse;
Obstetrics menu: GS, CRL, BPD, HC, AC, FL, Fetus Weight;
Heart menu: Distance, Time, Slope, Rhythm;
Standard configuration:
10 inches led main unit 1set;
60R/3.5MHZ Convex array probe 1pc;
Power line 1pc;
Ground line 1pc;
Fuse 4 pc;
User’s manual in English 1pc;
Warranty card 1pc;
Options:
L40/7.5MHZ Linear array probe;
20R/5.0MHZ Micro-Convex array probe;
13R/6.5MHZ Trans-vaginal array probe;
7.5MHZ Trans-rectal probe;
Mitisubishi Video Printer P93;

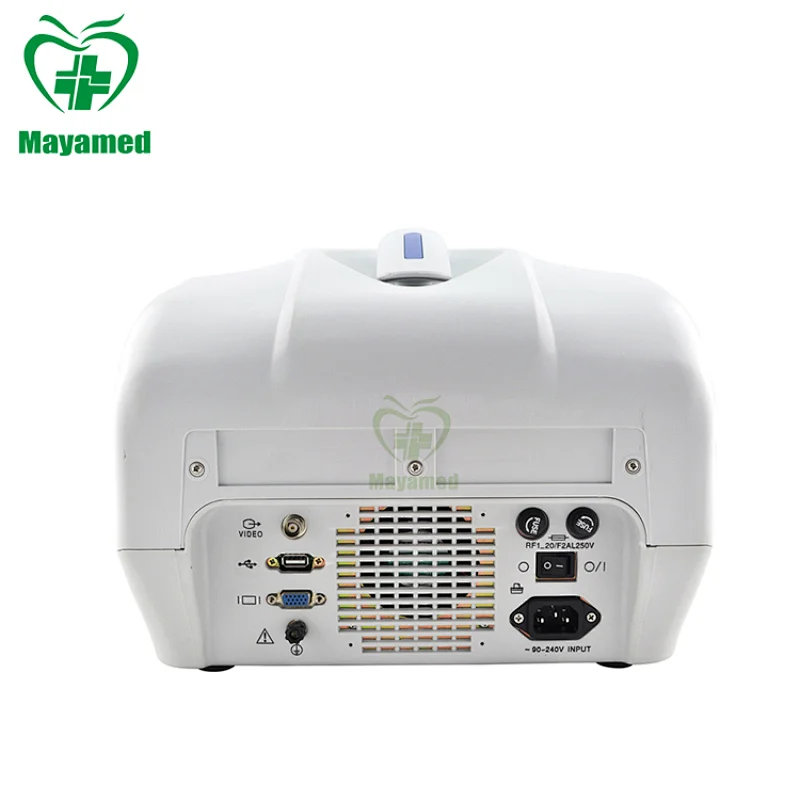

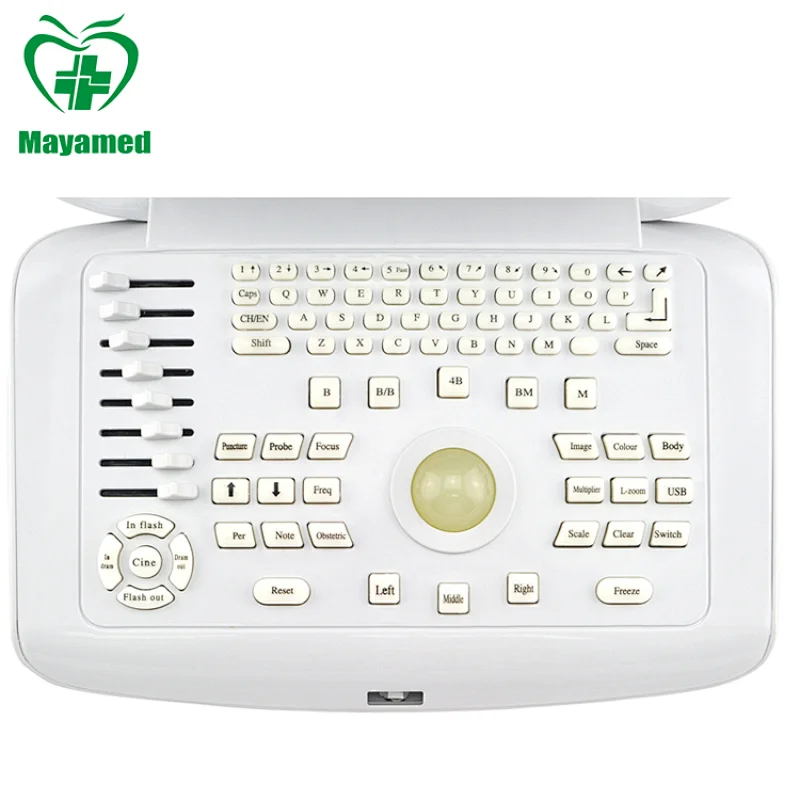

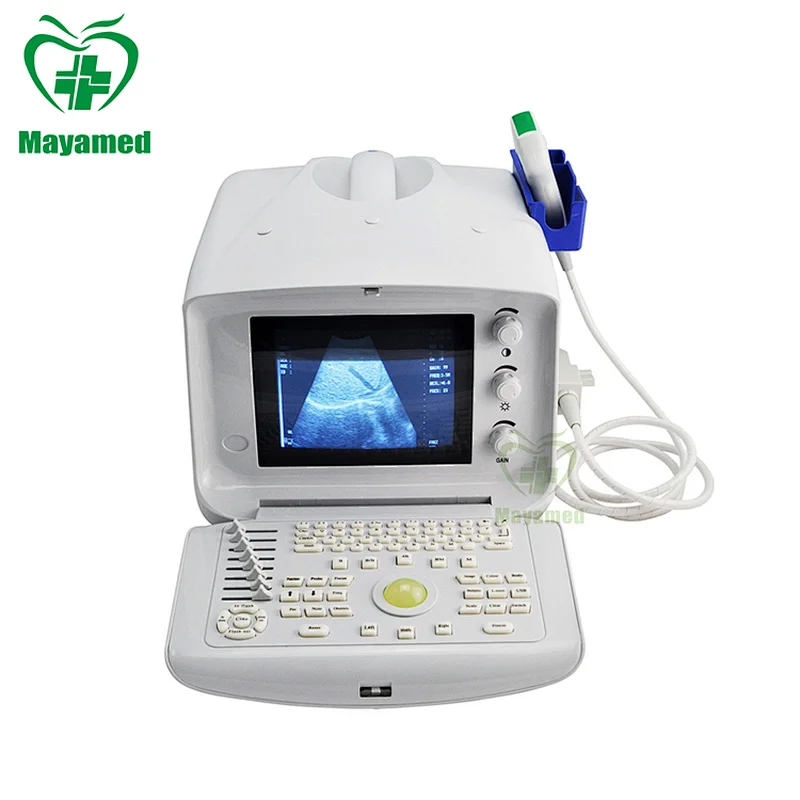

Pictures:

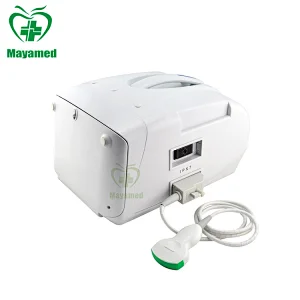

Probes:
