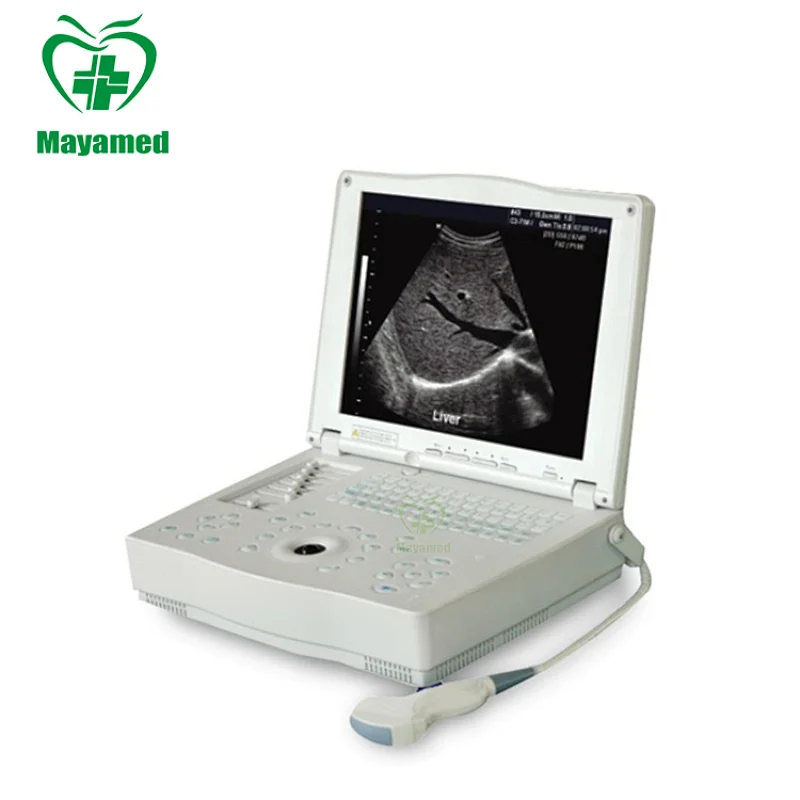

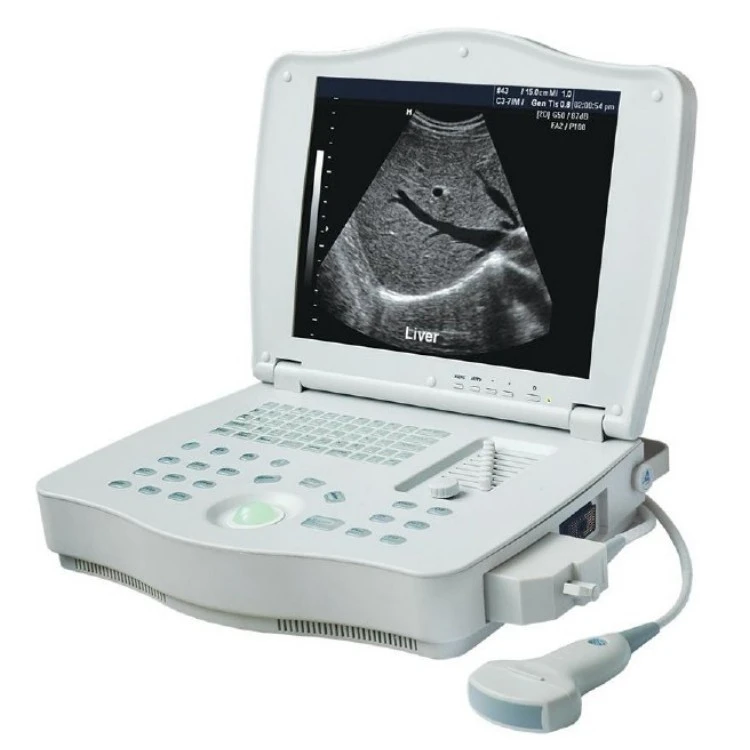

- Type:Doppler Ultrasound Equipment
- Image mode:B, B/B, B+M, M, 4B, 8B
- Scanning mode:Convex and linear array
- Multi-frequency probe:2.5~8.5 MHz
- Electronic focus:Acoustic lens focus, single focus and multiple focus
- Max display depth:220mm
- Depth enhancement:Yes
- Gray Scalel:256
- Display:15'' LCD
- Power Source:Electricity
- Warranty:1 Year
- After-sale Service:Online technical support
- Material:metal
- Shelf Life:1years
- Quality Certification:ce
- Instrument classification:Class II
- Safety standard:none
- Place of Origin:CN;GUA
- Model Number:MY-A004
- Brand Name:MAYA
Features:
- 15'' LCD (abbr. Liquid Crystal Display)
- Multi-frequency probes
- Real-time zooming
- 128-frame cineloop
- Multi-segment TGC adjustment
Imaging Processing:
- Part zoom in real time, gray curve control, STC curve, edge enhancement, dynamic range, frame correlation, 256 gray scale, image reverse function
- Pre-processing: multi-segments TGC adjustment, frame correlation, image direction
- Post-processing: left/right, up/down, positive/negative
- Zoom: magnification (4 steps)
- Cine loop: 128 frames
Software Functions:
- General measurement: distance, circumference, area, oval, trace, volume, HR, gestational week
- Obstetric measurement soft: GS, CRL, BPD, AC, HC, FL, AFI, EDD, and calculating fetus weight, pregnancy week, expected delivery date, fetal physiological rating according to the previous measurements

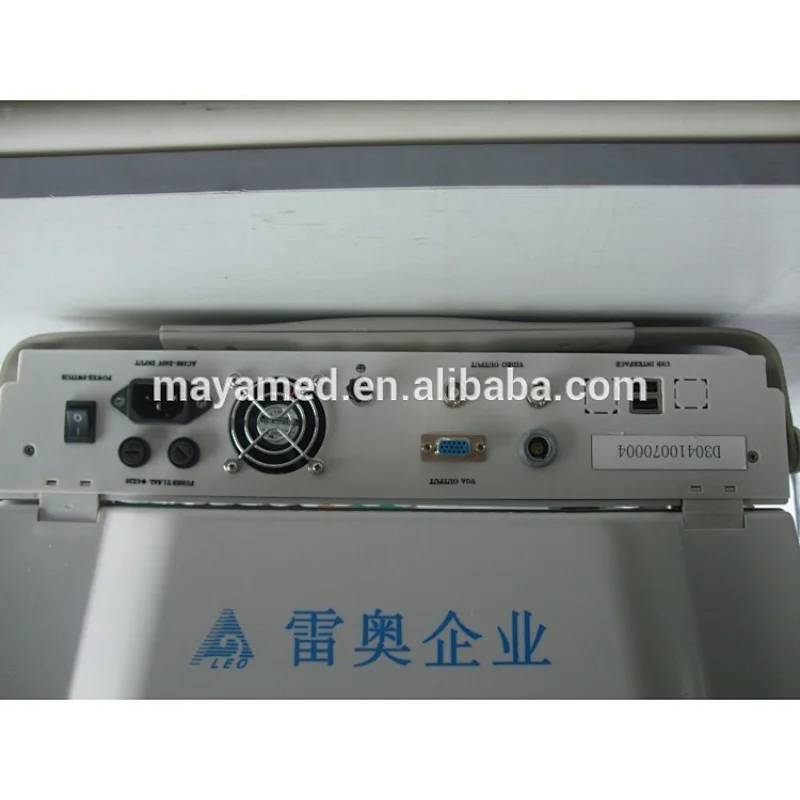

Peripheral Ports:
- VGA port
- PAL-D video output
Specification:
Image mode | B, B/B, B+M, M, 4B, 8B |
Scanning mode | Convex and linear array |
Multi-frequency probe | 2.5~8.5 MHz |
Image magnification | ×1.0, ×1.2, ×1.5, ×2.0. |
Electronic focus | Acoustic lens focus, single focus and multiple focus |
Max display depth | 220mm |
Depth enhancement | Yes |
Local zoom | Yes |
Frame correlation function | Yes |
Adjustment total gain and dynamic range | Yes |
Gray Scale | 256 |
Display | 15'' LCD |
Gain Control | 6-segment STC segmentation control, full gain control |
Probe connectors | 1 (standard) |
Cine Loop | 128 frames |
Scanning frequency | 2.5~8.5 MHz (depends on probes) |
Image reverse | Left/right, up/down, positive/negative |
Comment | Name, Age, Sex,number of patient recorder, diagnostic date, 24 markers of body location, remarks in full screen |
Body marks | 18 |
Gray Scale Conversion | γrectification |
Pseudo Color Function | 8 colors |
Power supply | AC 110V60Hz,220V 50Hz |
Power consumption | ≤100VA |
Dimensions | 380x285x110mm (LxHxM) |
Net weight | approx. 6.8kg |
Standard Configuration:
- Main unit
- 15'' LCD (abbr. Liquid Crystal Display)
- 128-frame cine loop
- one probe connectors
- 3.5MHz electronic convex probe (2.5/5.0MHz)
Optional:
- Electronic transvaginal probe (5.0/7.5MHz)
- Electronic high-frequency linear probe (6.5/8.5MHz)
- Thermal printer
- Trolley
