High Frequency Hospital 4KW Mobile Digital  Portable X-ray System Medical X Ray Machine Equipment Price
High Frequency Hospital 4KW Mobile Digital  Portable X-ray System Medical X Ray Machine Equipment Price
High Frequency Hospital 4KW Mobile Digital  Portable X-ray System Medical X Ray Machine Equipment Price
High Frequency Hospital 4KW Mobile Digital  Portable X-ray System Medical X Ray Machine Equipment Price
High Frequency Hospital 4KW Mobile Digital  Portable X-ray System Medical X Ray Machine Equipment Price
High Frequency Hospital 4KW Mobile Digital  Portable X-ray System Medical X Ray Machine Equipment Price
High Frequency Hospital 4KW Mobile Digital  Portable X-ray System Medical X Ray Machine Equipment Price

High Frequency Hospital 4KW Mobile Digital Portable X-ray System Medical X Ray Machine Equipment Price

USD5,000.00 -USD25,000.00
  • Delivery:FOB
  • Minimum order quantity:1 set
  • Supply Ability:1800.0 set / Month
  • Country of Origin:Guangzhou,China
  • Model NO.: MY-D019A
    • Properties:Medical X-ray Equipments & Accessories
    • Name:Mobile Digital X-ray Machine
    • Voltage:AC220V ± 22V, frequency: 50/60 Hz±1Hz
    • Power capacity:≥5kVA; Inner resistance≤0.5Ω
    • Nominal power:100kV,40mA,0.1s,4kW
    • Frequency:≥40kHz
    • mA adjusting range:36mA~70mA
    • mAs adjusting range:1mAs-200mAs,shifted adjustment
    • Anode heating capacity:76kHU
    • Size:290*260*230 mm
    • Weight:18.8kg
    • Instrument classification:Class III
    • Brand Name:MAYA
    • Model Number:MY-D019A
    • Place of Origin:CN;GUA
    Product Description

    High Frequency MY-D019A Hospital 4KW Digital Portable Mobile X-ray System Medical X Ray Machine Equipment Price

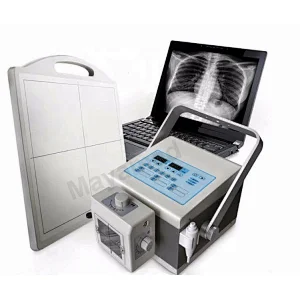

    MY-D019A Digital Portable X-ray System.jpg

    MY-D019A_X Ray_01.jpg

    Application
    The 4KW portable digital high frequency X-ray system is mainly suitable for extremities check,especially for rescues or diagnosis in Field operation sites,battlefields,stadiums,vet clinics etc.

    Features
    1)Deft and concise
    2)6 periods of digital LED display
    3)48 kinds of presupposed anatomy memory model choices
    4)Accuracy control method of simulation and digital double loop
    5)High precision control of tube voltage, tube current
    6)Failure self-protection, self-diagnosis

    Specification
    Model MY-D019A
    Input power Voltage: AC220V±22V Frequency: 50/60Hz±1Hz
    Maximum output power :P =110kV×36mA=4kW
    Nominal power :100kV,40mA,0.1s,4kW
    kV adjusting range :40kV~110kV,Continuous adjustment step 1 kV
    mA adjusting range :36mA~70mA
    mAs adjusting range :1mAs-200mAs, Shifted adjustment
    s adjusting range :0.04s~3.2s
    X-ray tube Focus :0.6/1.5mm; Anode heat capacity:76kHU

    Rayence digital detector: 17X17inch
    Scintilatolr:CsI Direct Deposit
    Pixel Matrix: 3,328X3,328
    Limit resolution:Max.3.9LP/mm
    A/D Conversion:14bit
    Weight:4.1Kg


    Laptop
    Model:Lenovo Y40-80
    CPU:Intel Core i5
    Memory capacity:4GB
    Screen size: 14 inch

    Anatomy program :48 kinds of memory choices
    X-ray machine size: 290×260×230mm
    Weight :18.8kg

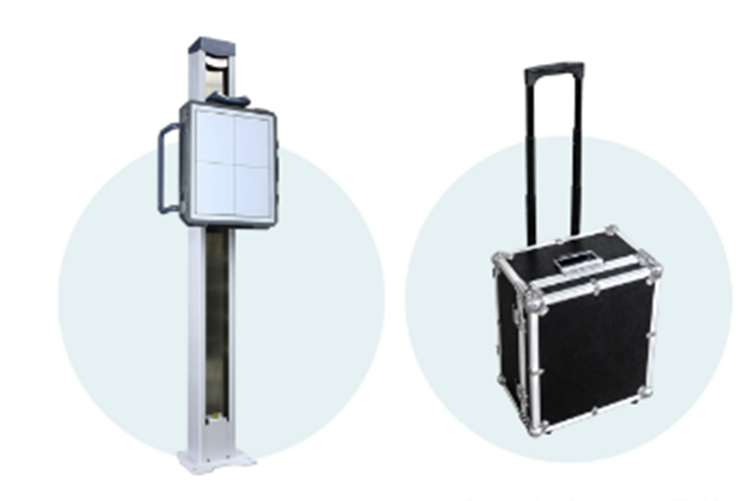

    Accessory: Standard:hand switch,remote control,suitcase,machine frame.d019a-03.jpg
