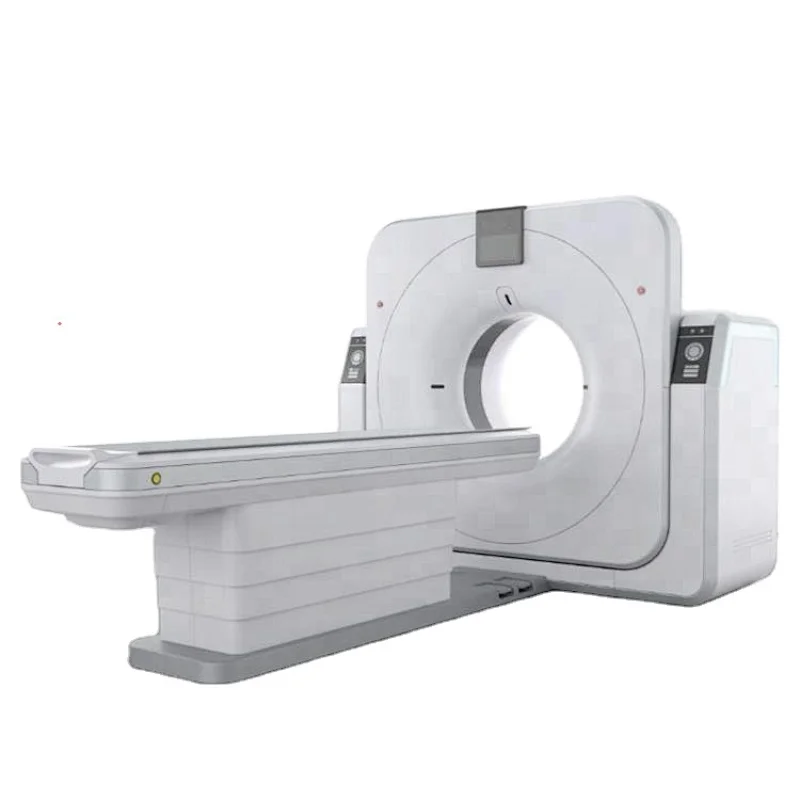

New multi-slice medical CT scan machine analyzer system equipment radiate room helical 64-CT Scanner price MY-D055B

New multi-slice medical CT scan machine analyzer system equipment radiate room helical 64-CT Scanner price MY-D055B

USD500,000.00 -USD800,000.00
  • Delivery:FOB
  • Minimum order quantity:1 set
  • Supply Ability:30.0 set / Month
  • Country of Origin:Guangzhou,China
  • Categories: CT MRI
    Model NO.: MY-D055B
    • Properties:Medical MRI Equipments
    • Patient Opening:76cm
    • Gantry Driven Type:Motor-driven
    • Tilt Capability:±30°
    • Gantry Remote-Control:Yes
    • Detector Type:GOS high-definition solid detector
    • Distance of Focus-Isocenter:570mm
    • Numbers of Detector Rows:32
    • Width of Z-Axle Detector:20mm
    • Slice Number:64
    • Power Source:Electricity
    • Warranty:1 Year
    • After-sale Service:Online technical support
    • Shelf Life:1years
    • Instrument classification:Class II
    • Place of Origin:CN;GUA
    • Model Number:MY-D055B
    • Brand Name:MAYA
    • Material:N/A
    • Quality Certification:N/A
    • Safety standard:N/A


    They are permanent MRI systems series with magnet field strength goes from 0.20T,0.30T,0.35T,0.42T to 0.50T, superconductive MRI systems series with magnet filed strength goes from 0.5T,0.7T,1.2T,1.5T to 3.0T. CT series with 16 slice, 32 slice and 64 slice. X-ray series like Ceiling suspension DR, U-arm DR, digital fluoroscopy, mobile digital X-Ray,digital mammography, etc. Full digital portable and trolley color Doppler ultrasound series; nuclear medicine series like single-photon emission computed tomography (SPECT), wide FOV gamma camera, etc.; medical linear accelerator, BHG-300 gamma ray head stereotactic radiotherapy series; and medical information software. With the high-quality, high-tech and high performance-price-ratio products, so far its markets have covered more than 50 countries and regions, including all domestic provinces, cities & autonomous regions; and Europe, America, Africa, Middle East and Southeast Asia, etc.

    MY-D055B is a new 64 slice spiral CT scanner that MAYA company introduced in 2016, the system includes the industry's top technology, it can produce high-definition images, it has rich software function, meets the demand of the hospital for large daily patient flow, it has the major characteristics include:

    The image chain of MY-D055B adopts mature technologies, the integrity of the system is balanced and strong.


    The system config the industry's leading dynamic real-time zooming technology and real 3D cone parallel reconstruction technology, so that the system can get the aperture expanded and at the same time get high definition image and leading high resolution image quality.


    MY-D055B includes below high-lighted technologies and features:


    Mature and stable large heat capacity tube

    This tube can meet the demand of large patient flow and complex scanning, in the meantime, guarantee the system operating costs under control.


    Dynamic reconstruction convolution technology based on FOV

    Dynamicreconstruction convolution technology based on FOV can real-time match the algorithm along with the different field of view to ensure different tissues have an optimal effect in the images, this technology is similar as the digital camera, ensures that the users can dynamically capture the best photos.


    (1)The upper left and right image are identical and replace them with a better patient body image generated by BCT at FOV of 50cm, 45cm or 40cm, whichever is appropriate.
    (2)The lower left image was just cut off the upper left image into half in size and enlarge by factor 2 to get the same size but blurred image.
    (3)Replace the blank blue block with the image reconstructed at half FOV of the upper right image, using the image matrix dimension 512x512 identical to that of the upper right image.
    (4)As such, the point of dynamic reconstruction kernel can be illustrated.

    Intelligent mA tracking technology

    On the premise of the quality of the image guaranteed, the system can automatically adjusts the output tube current in Z axis direction and X axis direction.Intelligent mA tracking technology can reduce about 40% radiation dose.


    Parallel 3D cone beam reconstruction technology

    Integrated parallel computing reconstruction based on true 3D cone beam, the final image is closer to the true tissue, the image is clearer.


    iDream tensor iteration low-dose technology


    76 cm aperture design

    Place the patients at ease and comfortable.


    MY-D055BSpecification

    No.

    Item

    Specification

    1

    Gantry

    1.1

    Patient Opening

    76cm

    1.2

    Gantry Driven Type

    Motor-driven

    1.3

    Tilt Capability

    ±30°

    1.4

    Gantry Remote-Control

    Yes

    1.5

    Detector Type

    GOS high-definition solid detector

    1.6

    Distance of Focus-Isocenter

    570mm

    1.7

    Numbers of Detector Rows

    32

    1.8

    Width of Z-Axle Detector

    20mm

    1.9

    Detector Columns of Channels per Row

    864

    1.10

    Numbers of Detector Columns

    27648

    1.11

    Slice Number

    64

    1.12

    DAS Column Number

    55296

    1.13

    DAS Acquisition Modes

    64×0.625mm
    32×0.625mm
    16×1.25mm
    8×2.5mm
    4×5.0mm
    2×10mm

    1.14

    Data-Transfer Type

    RF,optical fiber communication

    1.15

    3D Laser Orientation

    Provided

    1.16

    Automatic Exposure Control

    Provided

    1.17

    Auto-Voice Function

    Yes

    2

    Scan Parameter

    2.1

    Shortest 360 Degree Rotation Time

    0.39s

    2.2

    Allowed Rotation Times

    0.39s, 0.5s,0.6s,0.7s, 0.8s,1.0s,2.0s

    2.3

    Slice Numbers of Rotation

    64

    2.4

    Minimum Scan Slice Thickness

    0.625mm

    2.5

    Minimum Reconstruction Thickness

    0.625mm

    2.6

    Maximum Scan Slice Thickness

    10mm

    2.7

    Reconstruction Slice Thickness

    0.625mm

    2.8

    Speed of Image Reconstruction

    10 frames/s

    2.9

    Scan FOV

    50cm

    2.10

    Max. Image Reconstruction Matrix

    1024×1024

    2.11

    Max. Image Display Matrix

    1024×1024
    2.12

    Maximum Continuous Scan Duration

    100s

    2.13

    Maximum Continuous Scan Length

    1950mm

    2.14

    Range of Pitch

    0.13-1.5

    2.15

    Scan Mode Scout Scan

    Axial Scan

    Helical Scan

    Cine Scan

    3

    HV generator and Tube

    3.1

    Maximum Output Power of Generator

    80kW

    3.2

    Tube kV Selections

    80kV,100kV
    120kV,140kV
    3.3

    Tube mA Range

    10~667mA
    3.4

    Tube Heat Capacity

    8.0MHu

    3.5

    Heat Dissipation Rate

    931 kHU/min

    3.6

    Type of Cooling

    Oil cooling + Air cooling
    3.7

    Tube Focus

    1.1mm×1.2mm
    0.6mm×1.2mm

    3.8

    Flying Focal Spot Technology

    Provided

    3.9

    mA Modulation Technology

    Provided

    4

    Patient Table

    4.1

    Can Position Outside of Scan Room

    Yes

    4.2

    Laser Position System Accuracy

    ±1mm

    4.3

    Maximum Horizontal Movable Range

    1950mm

    4.4

    Table Horizontal Scan Range

    1850mm

    4.5

    Table accuracy

    0.25mm

    4.6

    Table Vertical Movable Range

    425~990mm

    4.7

    Maximum Speed of Vertical Movement

    16.5mm/s

    4.8

    Maximum Speed of Horizontal Movement

    5 mm/s ~ 160 mm/s ±3%

    4.9

    Maximum Patient Weight

    250kg

    4.10

    Foot Pedal of Table

    Optional

    Service

    MAYA come to the market since 2000, got great improvement in service, gradually establish a set of mature service strategy, including

    *Three-level service network
    1.Local partner engineer: primary diagnosing + in site maintenance
    2.MAYA service engineer: remote technical support + in site service (in case necessary)
    3.MAYA R&D center: technical support

    *Spare parts
    1.Inventory is always ready
    2.Delivery by express: within 2 working days pack off
    3.Engineer carry-on: For big issue engineer will be in site with the spare parts service

    Site requirements

    Sample, the system needs at least 2 rooms, shown as following:
