- Scanning mode:Electronic array
- Display mode:B, B/M, and Color, PW, PDI
- Frequency:Convex/Phasedarray probe 3.5MHz/5MHz, Linear probe 7.5MHz/10.0MHz
- Display Depth:Convex 90/160/220/305mm. Linear 20/40/60/100mm
- Measurement:Length, Area, Angle, Obstetrics
- Image frame rate:18 frames/second
- Dimension:156 x 60 * 20mm
- Weight:220g
- Wifi type:802.11g/20MHz/5G/450Mbps
- Sean angle and width:convex 50°,Phasedarray 80°,linear 40mm
- Type:Portable ultrasound probe
- Instrument classification:Class II
- Warranty:1 Year
- After-sale Service:Online technical support
- Place of Origin:CN;GUA
- Brand Name:Mayamed
- Model Number:MY-A023H
Maya Medical have rich experience to build up the new hospital and new clinic , our one-stop service is your best choice !
We concentrate on African market and set up two branches in Nigeria and Madagascar. Meanwhile, we have already established after-sale service office in Lagos Nigeria, Islambad Pakistan and also Neirobi Kenya.

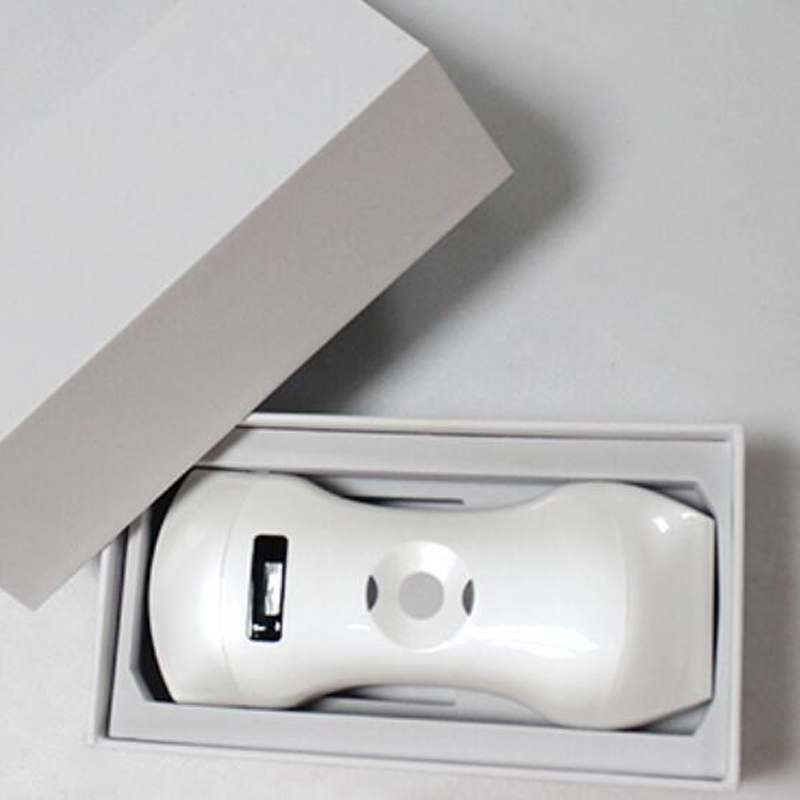

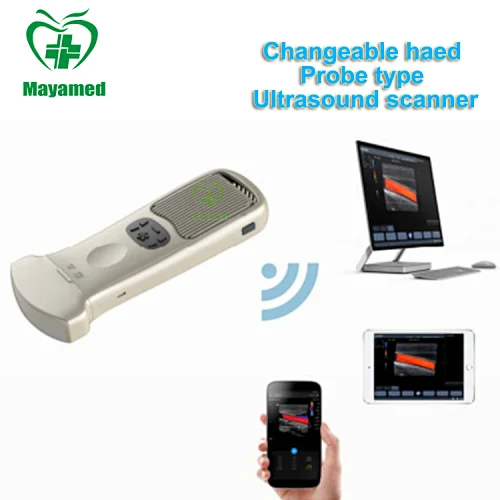

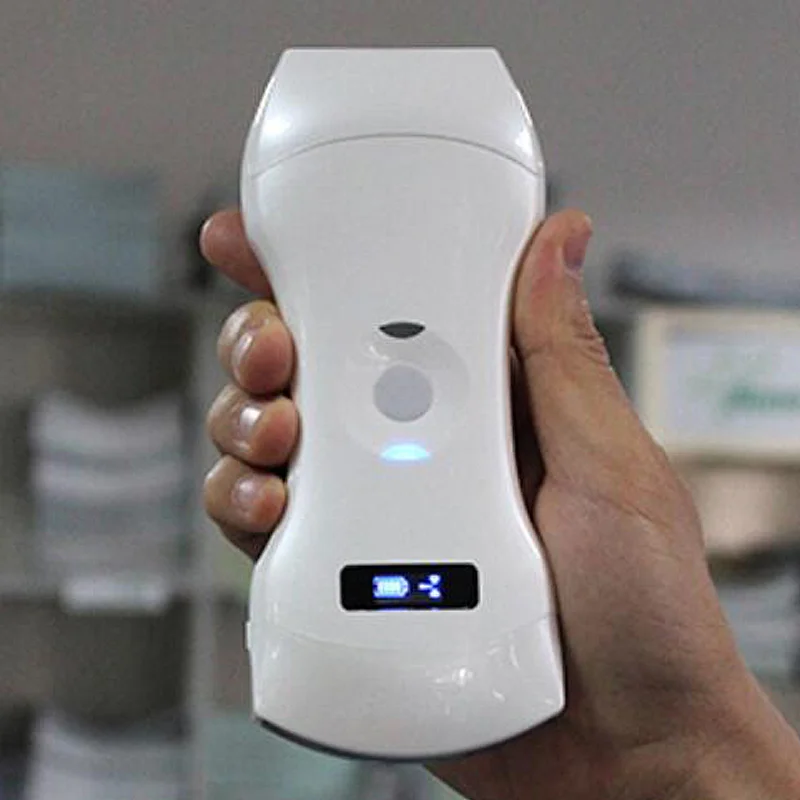

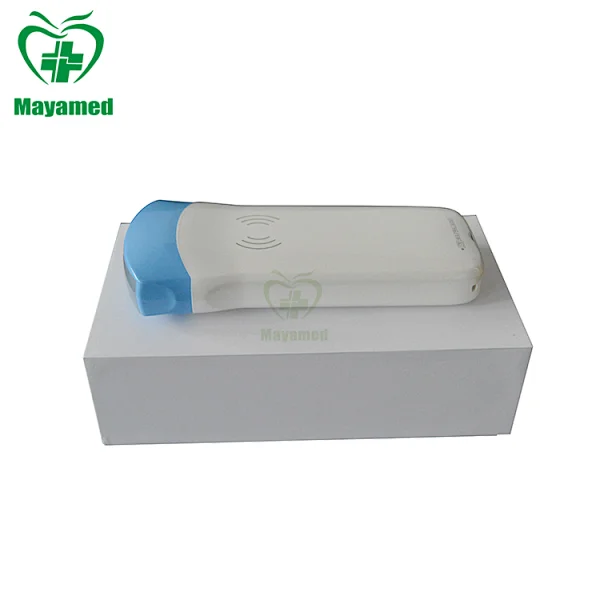

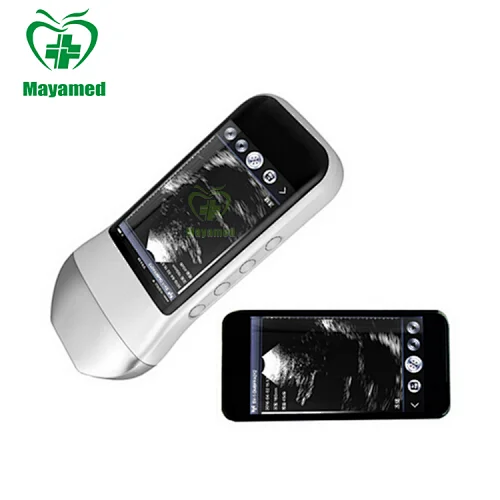

MY-A023H electronic array color doppler portable ultrasound scanner wifi wireless ultrasound probe
Scanning mode: Electronic array

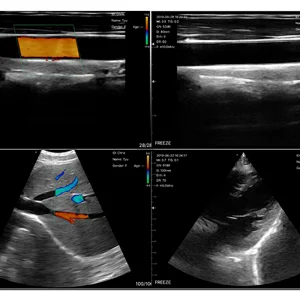

Display mode: B, B/M, and Color, PW, PDI
Frequency: Convex/Phasedarray probe 3.5MHz/5MHz, Linear probe 7.5MHz/10.0MHz
Display Depth: Convex 90/160/220/305mm. Linear 20/40/60/100mm
Sean angle and width: Convex 50°,Phasedarray 80°,linear 40mm
Image Adjust: Gain, DYN, Focus, Depth, Harmonic, Denoise
Puncture assist function: The function of in-piane puncture guide line, out-of-plane puncture guide line,automatic blood vessel measurement, and the enhancement function of needle point development.
Measurement : Length, Area, Angle, Obstetrics
Image frame rate: 18 frames/second
Battery working time: 3 hours Charge: by wireless charger, 2 hours
Dimension: 156 x 60 * 20mm
Weight: 220g
Wifi type: 802.11g/20MHz/5G/450Mbps

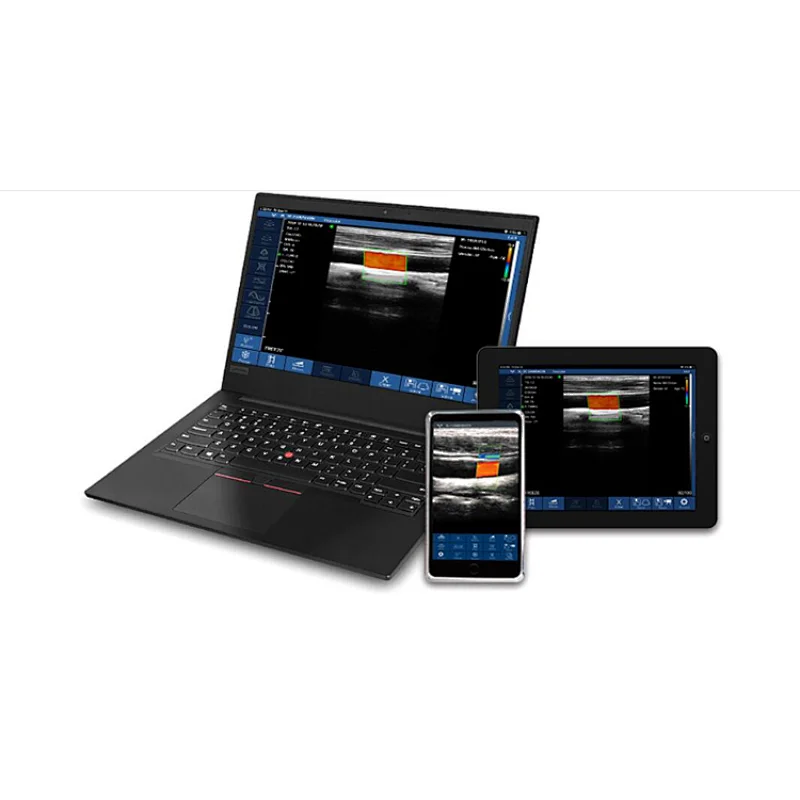

Working system: Apple IOS and Android Windows
