Characteristics:

All Information is Stored:
The system provides advanced full-information storage function, a complete

record of the clinical testing information.

A flexible testing process can be reproduced, in a dynamic real-time playback mode to adjust the gain, envelope, manual calculation. The maximum meets

clinical needs.

Advanced M-wave mode:
Completely abandon the traditional model. From the 512-point FFT large

image, doctors are able to freely observe the Doppler signal over the depth,

arbitrary switching handy.
High sensitivity:
Application of digital technology makes the equipment work without

ultrasound coupling agent even under 10% power. The image is still

very clear and the power could be adjusted freely, making detection of elderly patients with no problems.
Powerful Case Management:
The system provides a case database management system.The network

transmission function optional as per customers’ request.
Probe Conversion:
With the technology, using 4MHz continuous Doppler shift pulse Doppler

detects extracranial blood vessels, superficial blood vessels more accurate.
Report Edit:
Based on powerful word document editing, free editing, storage, access to

and so on, the coexistence of a large number of diagnostic terminology,

diagnosis.
Training: Graphic video of professional medical training software

Main technical parameters:

Window 7 operation system
PW depth:5mm-150mm, precision: 1mm
Probe Frequency: 2MHz PW,4MHz CW
Spectrum scanning speed: 4s-16s can be arbitrarily adjusted
Sample volume regulation (PW): 0.77mm-13mm
Maximum detection speed: ≥ 300cm /s
Gain range:1-56dB
Transmit power: 10150mw(1-800% adjusted)
Spectrum display: more than 1000 colordisc
All information playback:>30h, synchronous spectrum image and voice
Image storage: >20,000 frame
Automatically detect the display index: Vp Vm Vd PI RI SD MI HR TIC TIB
Frequency spectrum; 128point, 256 points, 512-point FFT
Supply Voltage: 220v±10%,50Hz/60Hz

Other technological index could be selected:8 segment M wave
Emboli detection function: under single channel or dual channel model to

monitor the emboli, fixing the emboli threshold.
Spindle wave technology
Monitoring trends images.

Clinical Applications:

Clinical diagnosis:

Cerebral vascular stenosis and occlusion

Cerebral embolism

Vasospasm

Cerebrovascular atherosclerosis

Arteriovenous malformation

Migraine headache

Hemorragic stroke, ischemic stroke

Intracranial aneurysm

Vertigo and vertebral-basilar artery disease diagnosis

Transient ischemic attack

Epidemiological study of brain blood vessel

Stroke prediction and the elderly health care

Standard Configuration:

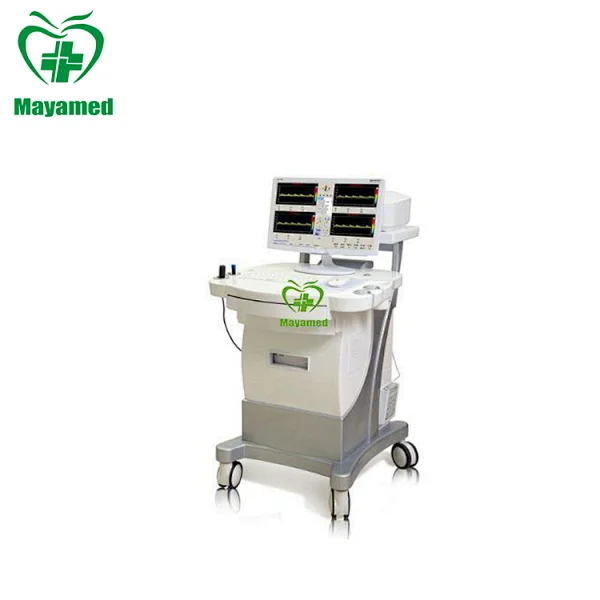

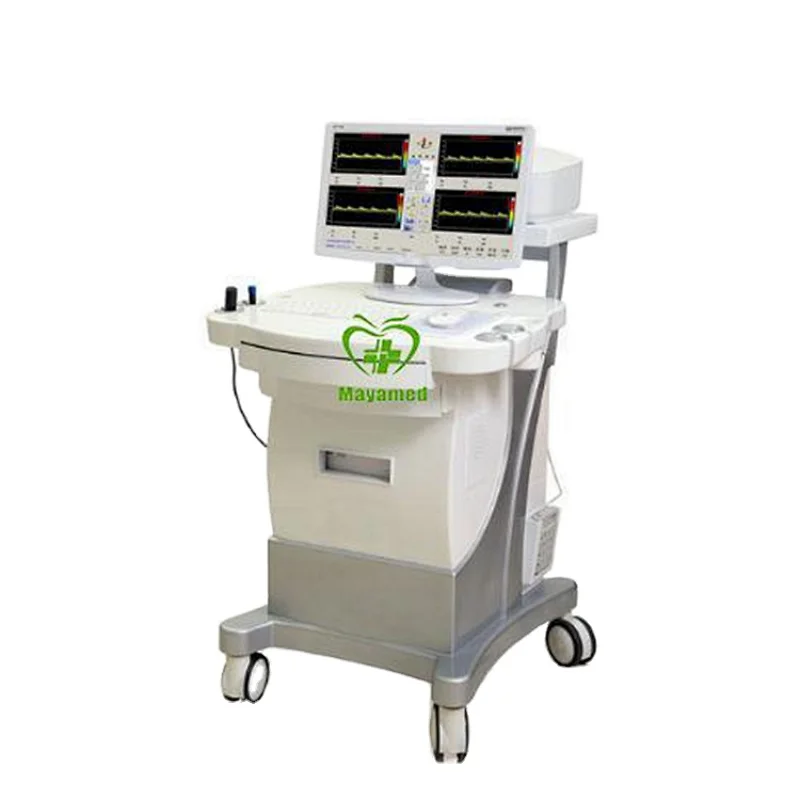

Trolley type/Luxury model:

Main unit 1 set
19inch LCD display 1 pc

English TCD software 1 pc

HP colorink-jetprinter 1 pc

2MHz PW probe 1 pc (2pcs for dual channel)

4MHz CW probe 1 pc

Medical Trolley 1 pc

Remote control keyboard 1 pc

English user manual 1 pc

Portable type:

Main unit (DELL laptop based) 1 set

English TCD software 1 pc

2MHz PW probe 1 pc (2pcs for dual channel)

4MHz CW probe 1 pc

Remote control keyboard 1 pc

English user manual 1 pc
