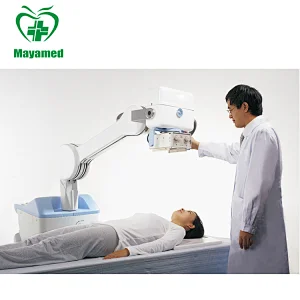

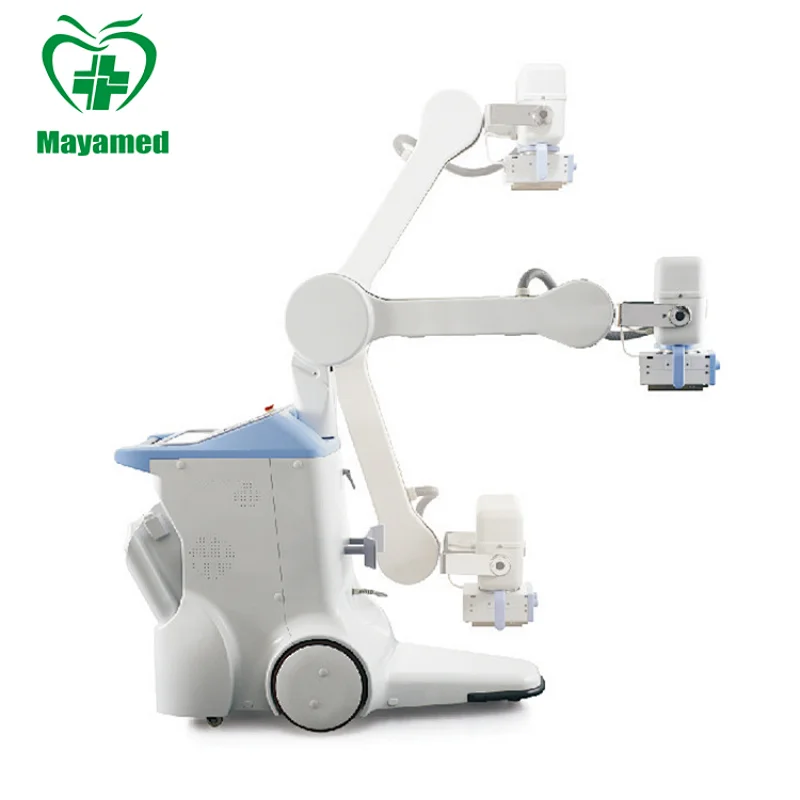

- Name:medcial equipment mobile digital x ray machine
- Interface:Dicom 3.0 interface
- size:1698*858*1662 mm
- Frame form:Folding
- Tube vertical travel range:525~1992mm
- Power:30KW
- Focus:0.6/1.3mm
- Inverter frequency:100kHz
- Average illuminance:≥100Lux(SID=1m)
- Pixel area:14X17 inch
- Properties:Medical X-ray Equipments & Accessories
- Instrument classification:Class II
- Warranty:1 Year
- After-sale Service:Online technical support
- Place of Origin:CN;GUA
- Brand Name:MAYA
- Model Number:MY-D049
Guangzhou Medical x-ray equipment system direct radiography mobile x-ray machine digital x ray machine
Medical equipment mobile digital x ray machine specification:
Part Name. | Quantity |
High Voltage Generator & X-ray tube | 1 |
Frame | 1 |
FP detector | 1 |
Collimator | 1 |
Acquisition system | 1 |
Optional parts | |
Remote Controlled Handswitch | 1 |
Vertical bucky stand | 1 |
Grid | 1 |
medcial equipment mobile digital x ray machine Specification:
Frame | |
Frame form | Folding |
Length | Min=1400mm;Max=1834mm |
Width | 730mm |
Height | Min=1430mm;Max=2000mm |
Tube vertical travel range | 525~1992mm |
The rotating angle | ±90° |
The maximum distance from center to focus | 1153mm |
The maximum height of the obstacles | 25mm |
Control mode | manual |
X-ray tube: | |
Tube form | combined |
Power | 30KW |
Focus | 0.6/1.3mm |
Anode heat storage capacity | 107KJ |
Housing heat storage capacity | 375KJ |
Maximum anode heat dissipation rate | 300W |
Maximum housing heat dissipation rate | 40W |
Anode rotation speed | 3000rmp |
Target Angle | 16° |
Generator | |
Rated power | 30KW |
Inverter frequency | 100kHz |
kV range | 40~125kV step=1kV |
Maximum mA | 425mA |
mAs range | 0.5-200mAs |
Focal Spots shift | depend on radiography |
conditions | shifted automatically |
Time of Radiography | 1ms~1.3s |
Numbers of APR | 40 (20 for small focus ,20 for big focus) |
Exposure parameters adjustment method | KV,MAS control |
Collimator: | |
Adjustment mode | manual |
Average illuminance | ≥100Lux(SID=1m) |
Lamp timer | 30S |
Voltage and power | 12VAC, 9A |
Inherent filtration | ≥2.0mmAL |
Light field shape | rectangle |
Tape measure | With a tape measure SID function |
Detector: | |
Pixel area | 14X17 inch |
Conversion screen | Amorphous silicon,DRZ |
Fill Factor | 100% |
Image Preview time | 8S |
A/D output | 14-bits |
Pixels matrix | 3072 x 2560 |
Pixels Pitch | 139 um |
Spatial resolution | 3.6LP/mm |
Power supply | 100-240VAC,47-63Hz |
Weight(Including housing ) | about 5Kg |
Cable length | 8m |
Imaging working station: | |
CPU | 2.0GHz |
Memory | DDR2 2G |
H ard disk | 320G |
Operating system | WINDOWS XP |
Peripheral | USB,Mouse,Keyboard ect |
Screen | 15 inch touch LCD |
Packing Dimensions(mm) and weight(kg) | |
Dimension | 1698*858*1662 |
Weight | 355 |
