- Item name:MY-D012 200mA x ray equipment price for hospital use
- Packing:wooden case
- Port:Huangpu
- Power Supply:A.C.380V / 220V (±10%), 50Hz ± 1Hz
- Maximum tube voltage:120KV
- Maximum tube currency:200mA
- High Voltage Generator Capacity:20KVA
- Beam Limited Device:Manually single automatic multi-optional
- Feature:radiograhpy Medical x-ray machine
- Properties:Medical X-ray Equipments & Accessories
- Instrument classification:Class II
- Warranty:1 Year
- After-sale Service:Online technical support
- Place of Origin:CN;GUA
- Brand Name:Mayamed
- Model Number:MY-D012
MY-D012 China medical system digital radiography x-ray machine 200mA x ray equipment for hospital
Features of the x ray equipment price :
Single diagnostic table and single X-ray tube with rotated anode
KV,mA and a interlocking protection and radiograph time-limited protection are provided
Filament for stabilizing voltage, space charge compensation and anode starting-up protection device are provided
Voltage of power supply and KV with digital display can be adjusted constantly and respectively
It becomes convenient to install without above-ground railway and be operated easilly
Electromagnetism are provided for pillar lengthways, crosswise, and sleeve moving up and down
Frame of the x ray equipment price :
Control Table, Diagnostic Table / Radiograph Device for Stomach and Intestine, High Voltage Transformer Assembly, High Voltage Cable, X-ray Tube Assembly
Technology Parameters of the x ray equipment price :
Description | Technology Parameters | |
Power Supply | Voltage | A.C.380V / 220V (±10%) |
Frequency | 50Hz ± 1Hz | |
Capacity | 20KVA | |
Power Supply Resistance | A.C.380V≤1.0Ω; A.C.220V≤0.3Ω | |
Maximum tube voltage | 120KV | |
Maximum tube currency | 200mA | |
Fluoroscopy | Tube voltage | 40~110KV |
Tube currency | 0.5~5mA | |
Radiograph | Tube voltage | 40~120KV |
Tube currency | Small Focus 50mA,100mA; Big Focus100,150,200mA | |
Spot film | 100mA (Small Focus) | |
Time | 0.04~6.3s Divided into 23 grades from 0.04~6.3s | |
High Voltage Generator | Capacity | 20KVA |
X-ray Tube | Model | XD 51—20,40 / 125 |
Focus | Small Focus 1×1mm2 Big Focus 2×2mm2 | |
Rotated Speed of anode | 2800r / min | |
Diagnostic Table | Scope of rotation | 90°~ 0°~-5° |
Mobile beam filtration device | Grid density N=28 | |
Focus Distance f o>1000mm | ||
Grid Ratio r=8 | ||
Distance from surface to film | ≤60mm | |
Stomach & Intestine Radiograph Device | Spot film device specification(Stomach & Intestine Radiograph) | 127×178mm( 5''× 7'') binary picture |
203×254mm( 8''×10'') binary picture | ||
254×305mm(10''×12'') binary picture | ||
280×356mm(11''×14'') quartering picture | ||
Moving lengthways (along ground railway) | 1500mm | |
Moving crosswise (left & right) | 740mm | |
Moving up and down | 700mm ~ 1900mm | |
Way of locking | Electromagnetism locking | |
Beam Limited Device | Manually single automatic multi-optional | |

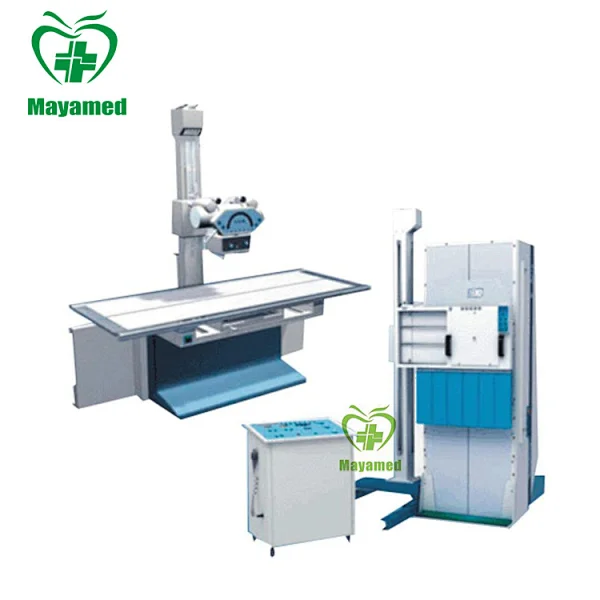

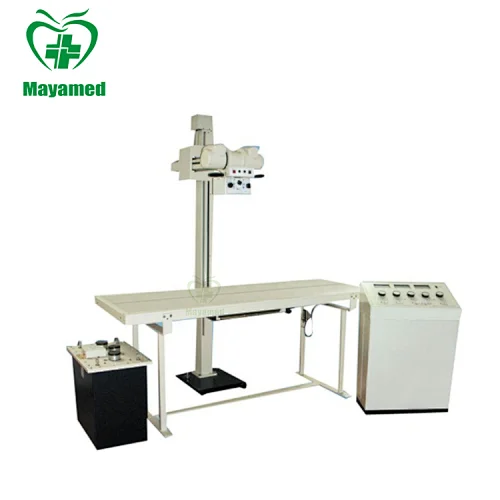

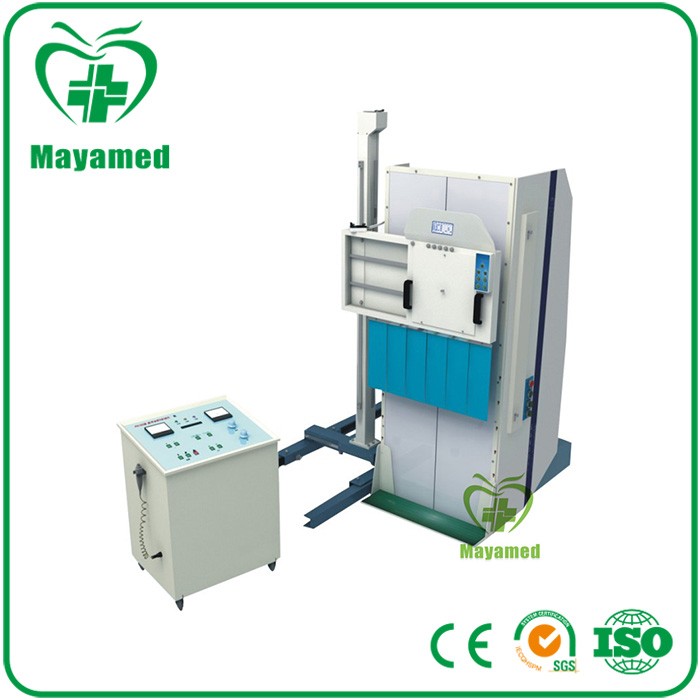

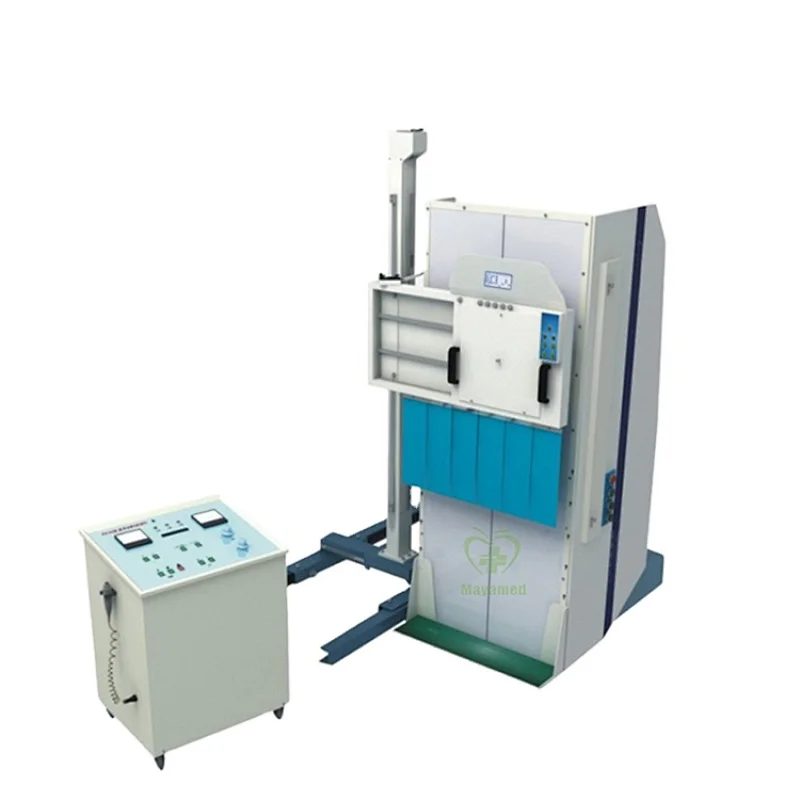

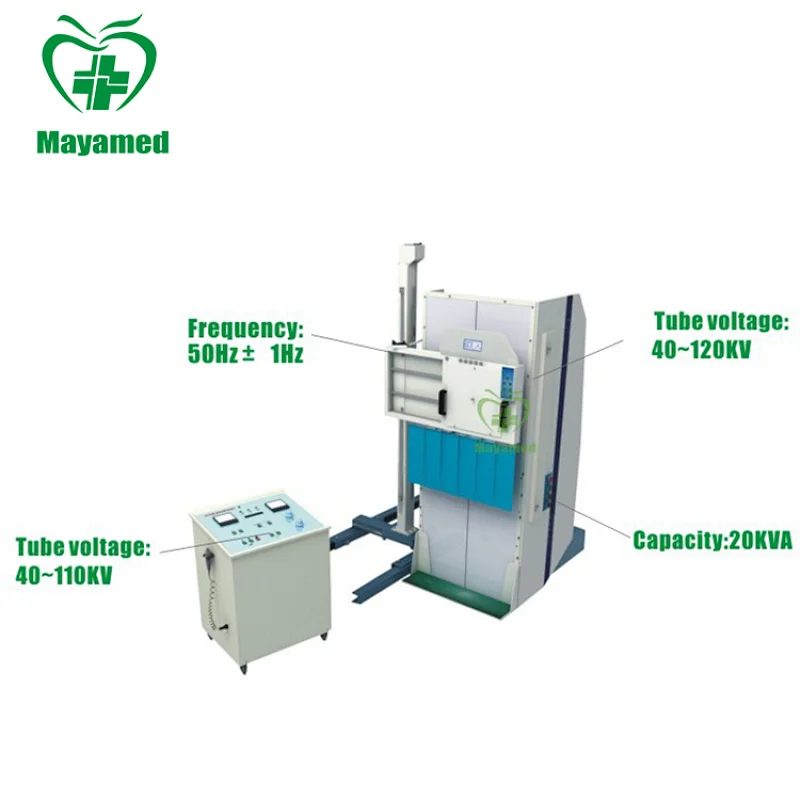

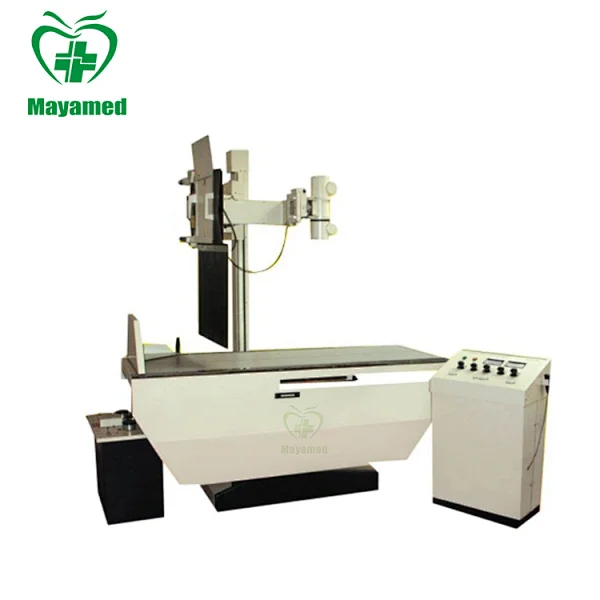

Picture of the x ray equipment price:
