- Place of Origin:CN;GUA
- Model Number:MY-C001
- Brand Name:MAYA patient monitor NIBP China
- Type:Blood Pressure Monitor
- Name:Touch Screen Handheld Multi parameter Patient Monitor
- Display::Touch screen,5.0 inch color TFT-LCD
- feature::portable patient monitor handheld patient monitor
- battery::Li-ion rechargeable battery, 3.7V/7200mAH
- Input::100~240VAC, 50/60Hz, 0.7A
- Model Number::MY-C001
- battery Recharge Time::10hours.
- data::USB and Bluetooth data upload
- Output::DC 5V, 1.5A
- Size::209mm*104mm*47.5mm

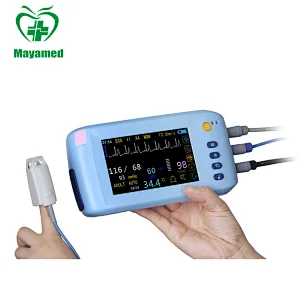

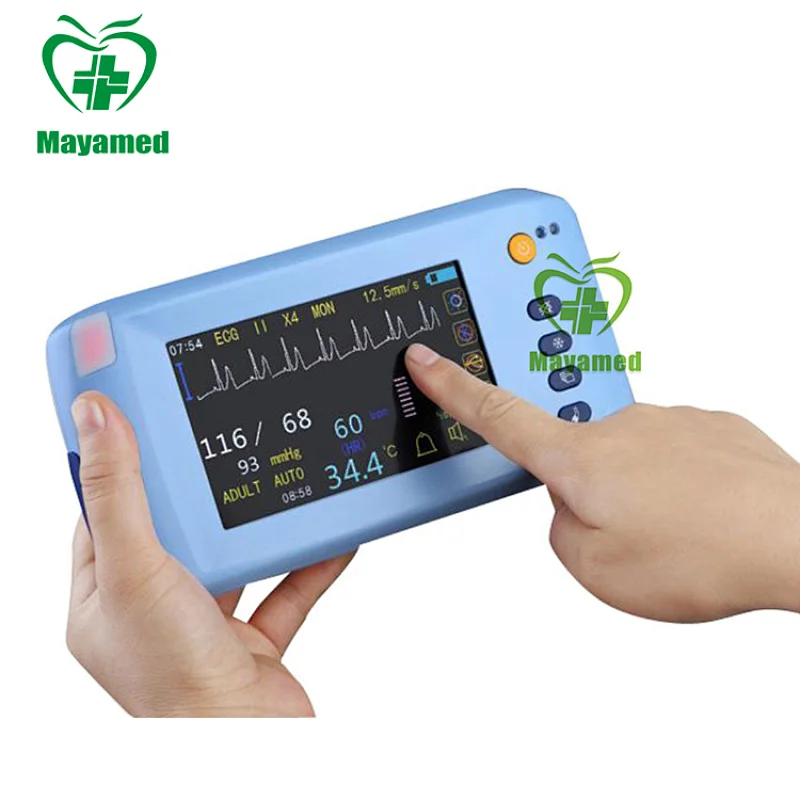

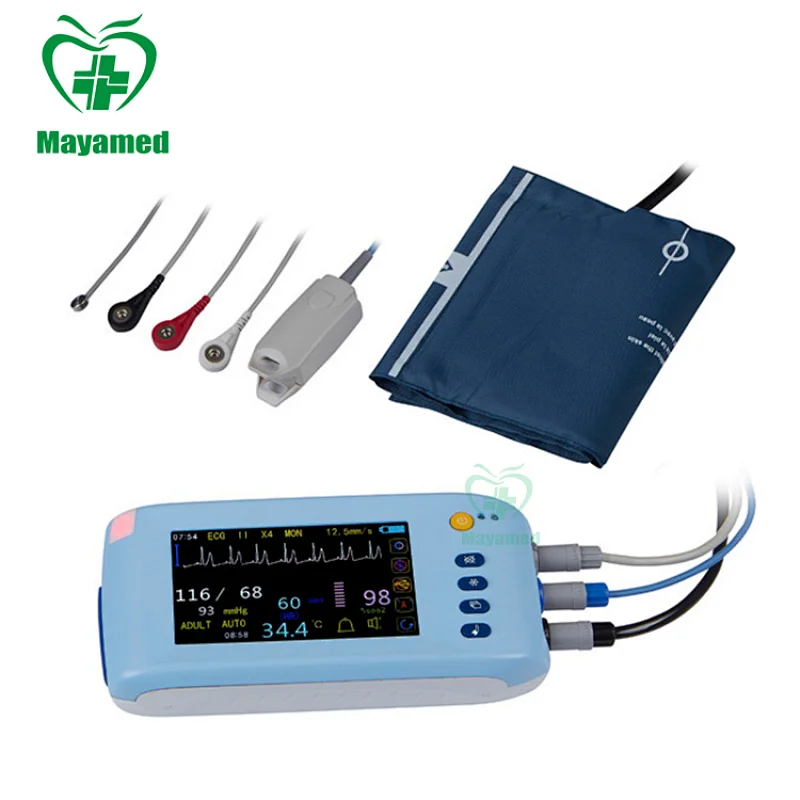

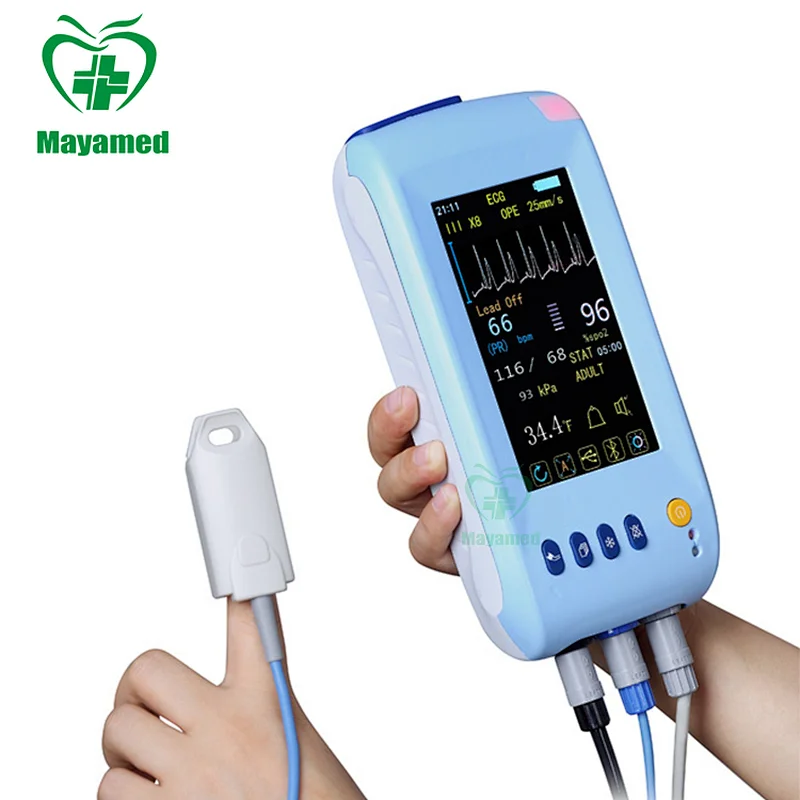

the optional MY-C001 handheld Touch screen patient monitor NIBP China :
Optional Bluetooth printer to print the waveform and data out.
Specification of MY-C001 handheld Touch screen patient monitor NIBP China:
1. General Specifications of this portable patient monitor handheld patient monitor :
this portable patient monitor handheld patient monitor Size: 209mm×104mm×47.5mm
this portable patient monitor handheld patient monitor Net Weight: 655g
Display Specification
Measurement Display: color TFT- LCD/touch screen
Power Supply Indicator: Dual-color LED (red/green)
Charging indicator: A green LED
2. Power Supply
this patient monitor have AC Power Adaptor
Input of this patient monitor : 100~240VAC, 50/60Hz, 0.7A
Output of this patient monitor : DC 5V, 1.5A
this patient monitor have Battery
Li-ion rechargeable battery, 3.7V/7200mAH
Operating Time: 15 hours with full battery capacity.
(Condition: 25°c NIBP working period is 15 minutes)
Recharge Time: 10 hours.
3. Environment
Temperature Working:0°c~45°c
Transport and Storage: -25°c~85°c
Humidity Working:30% ~85 %
Transport and Storage: 30% ~95 % (no condensation)
